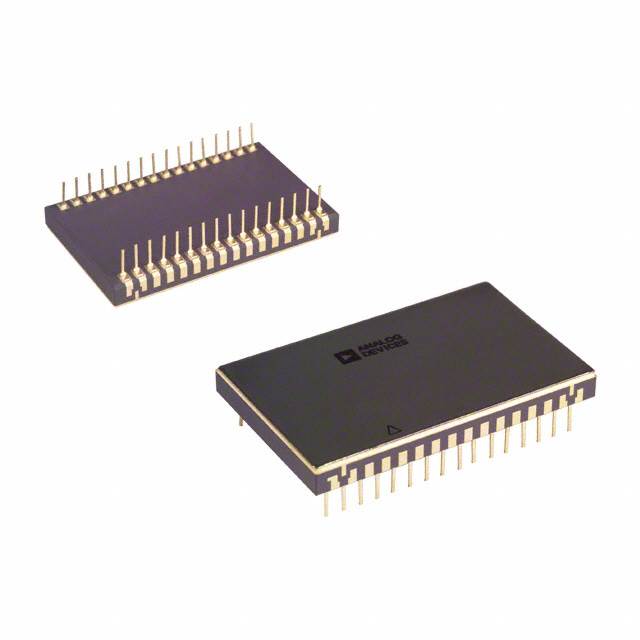

Analog Devices Inc. AD1380JD
Regular price
$653.53
Regular price
$687.93
Sale price
$653.53
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $653.53 | $653.53 |
| 15+ | $632.90 | $9,493.50 |
| 25+ | $619.14 | $15,478.50 |
| 50+ | $584.74 | $29,237.00 |
| 100+ | $515.95 | $51,595.00 |
| N+ | $103.19 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 50k |
| Number of Inputs | 16 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | ±14.5V ~ 15.5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 32-CDIP (0.910", 23.12mm) |
| Supplier Device Package | 32-BBDIP-H |
AD1380JD.pdf
×
