Analog Devices Inc. AD1385TD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1,078.51 | $1,078.51 |
| 15+ | $1,044.45 | $15,666.75 |
| 25+ | $1,021.74 | $25,543.50 |
| 50+ | $964.98 | $48,249.00 |
| 100+ | $851.45 | $85,145.00 |
| N+ | $170.29 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD1385 |
| Packaging | Bulk | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 14.25V ~ 15.75V, ±4.75V ~ 5.25V |
| Voltage - Supply, Digital | 14.25V ~ 15.75V, ±4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 48-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 48-SBDIP |

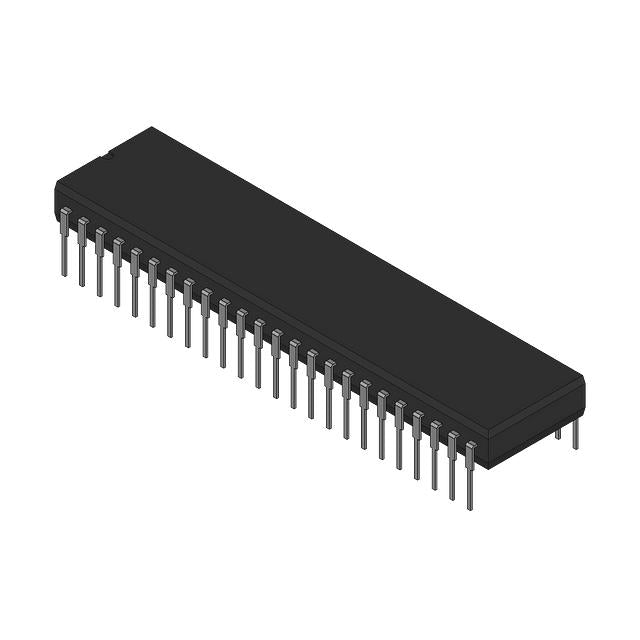

The AD1385TD from Analog Devices is a 16-bit analog-to-digital converter with a 500 kSPS sampling rate. This single-channel device features a sample-and-hold architecture and supports both external and internal references. It communicates via a parallel interface and is housed in a 48-pin ceramic CDIP package. Operating from -55°C to 125°C, it is designed for military and high-precision industrial applications where accuracy and reliability are paramount.
- 16-Bit Resolution: Delivers exceptional accuracy with 65,536 levels, ideal for high-precision measurement systems.
- 500 kSPS Sampling: Provides fast conversion speed without sacrificing resolution, suitable for real-time control.
- Dual Reference Support: Use internal reference for convenience or external for ultimate precision.
- Military Temperature Range: -55°C to 125°C ensures operation in extreme environments.
- Hermetic CDIP Package: 48-pin ceramic package offers superior protection for long-term reliability.
Precision Instrumentation
16-bit resolution and 500 kSPS sampling make it ideal for high-accuracy digital multimeters and precision voltage/current measurement instruments.
Aerospace Test Systems
Military temperature range and high resolution support flight test instrumentation for measuring strain, vibration, and temperature with extreme accuracy.
Medical Diagnostic Equipment
Used in high-end patient monitoring systems where precise biopotential signals (EEG, ECG) must be digitized without loss of detail.
Industrial Process Control
16-bit precision enables fine control of industrial processes requiring exact sensor feedback for pressure, flow, and level.
Scientific Data Acquisition
Ideal for laboratory experiments requiring high dynamic range, such as spectroscopy and particle detection systems.
Defense and Avionics
Qualified for military use, this ADC is suitable for navigation systems, radar signal processing, and electronic warfare equipment.
- Q: What is the resolution of the AD1385TD?
- A: The AD1385TD offers 16-bit resolution, providing 65,536 discrete output levels for high-precision measurements.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 500 kSPS (kilo-samples per second), balancing speed and precision.
- Q: How many channels does it have?
- A: It has a single input channel for dedicated high-accuracy conversion.
- Q: What interface does the AD1385TD use?
- A: It uses a parallel interface for direct connection to digital buses.
- Q: What reference options are available?
- A: Both external and internal references are supported, offering flexibility in precision applications.
- Q: What is the operating temperature range?
- A: It operates over the full military temperature range of -55°C to 125°C.
