Analog Devices Inc. AD2S66431B
Regular price
Dhs. 1,920.13
Regular price
Dhs. 2,021.20
Sale price
Dhs. 1,920.13
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1,920.13 | Dhs. 1,920.13 |
| 15+ | Dhs. 1,859.50 | Dhs. 27,892.50 |
| 25+ | Dhs. 1,819.08 | Dhs. 45,477.00 |
| 50+ | Dhs. 1,718.02 | Dhs. 85,901.00 |
| 100+ | Dhs. 1,515.90 | Dhs. 151,590.00 |
| N+ | Dhs. 303.18 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

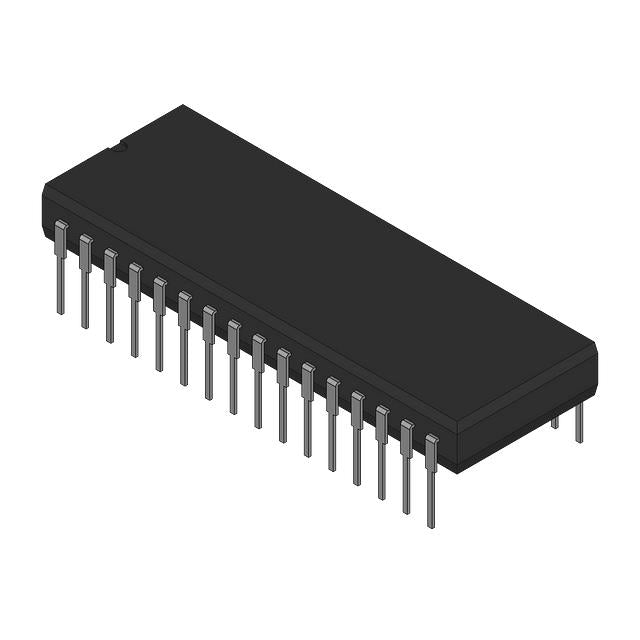

AD2S66431B - Digital to Resolver Converter IC
The AD2S66431B from Analog Devices is a high-precision digital to resolver converter designed for demanding aerospace, automotive, and industrial motion control applications. This dual-resolution IC supports both 14-bit and 16-bit conversion, offering exceptional accuracy for position sensing and motor control systems operating in extreme temperature environments.
Key Features & Benefits
- Dual Resolution: 14-bit and 16-bit conversion options for flexible precision requirements
- Extended Temperature Range: -55°C to 125°C operation ensures reliability in harsh environments
- Parallel Data Interface: Fast, efficient data transfer for real-time control applications
- Dual Supply Design: ±14.25V to 15.75V supply voltage range
- Through-Hole Mounting: 32-CDIP package for robust mechanical connection and easy serviceability
- Industrial Grade Quality: Manufactured by Analog Devices with proven reliability and long lifecycle support
Typical Applications
- Aerospace and defense position sensing systems
- Industrial servo motor control
- Automotive steering and positioning systems
- Robotics and automation equipment
- High-precision instrumentation
Quality & Traceability: All components are sourced directly from authorized distributors with full traceability documentation. RoHS and REACH compliant. Long lifecycle support ensures availability for critical applications.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Bulk | |
| Type | Digital Converter to Resolver |
| Number of Channels | - |
| Resolution (Bits) | 14 b, 16 b |
| Sampling Rate (Per Second) | - |
| Data Interface | Parallel |
| Voltage Supply Source | Dual Supply |
| Voltage - Supply | ±14.25V ~ 15.75V, ±14.25V ~ 15.75V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 32-CDIP (0.900", 22.86mm) |
| Supplier Device Package | 32-CDIP |
AD2S66431B.pdf
×
