Analog Devices Inc. AD4696BCPZ-RL7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $26.48 | $26.48 |
| 15+ | $25.64 | $384.60 |
| 25+ | $25.08 | $627.00 |
| 50+ | $23.69 | $1,184.50 |
| 100+ | $20.90 | $2,090.00 |
| N+ | $4.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 16 |
| Input Type | Pseudo-Differential |
| Data Interface | DSP, MICROWIRE, QSPI, Serial, SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 1.71V ~ 1.89V, 3.15V ~ 5.5V |
| Voltage - Supply, Digital | 1.71V ~ 1.89V, 3.15V ~ 5.5V |
| Features | Temperature Sensor, Internal Oscillator |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

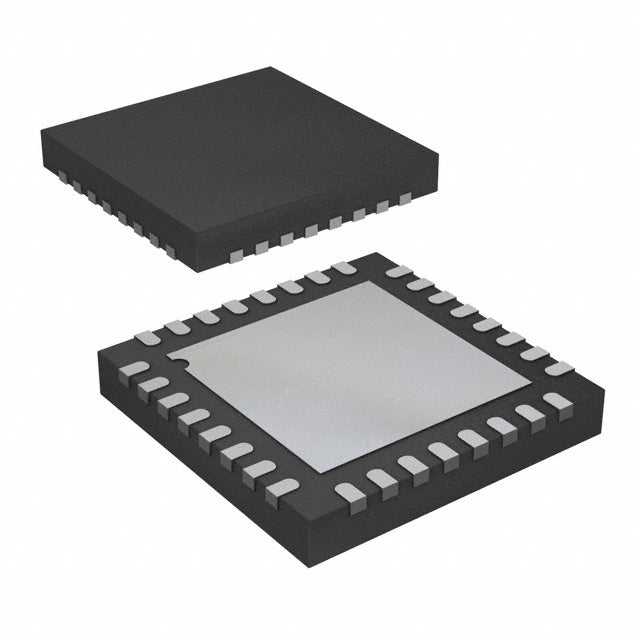

| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-WQ (5x5) |
| ROHS |  |
The AD4696BCPZ-RL7 is a high-resolution, 16-bit ADC from Analog Devices, offering 16 input channels and a 1M SPS sampling rate. It features a flexible serial interface (SPI, QSPI, MICROWIRE, DSP) and requires an external reference. This MUX-ADC is designed for multi-channel data acquisition systems in industrial, automotive, and medical applications. It is housed in a compact 32-WFQFN exposed pad package.
- High Resolution: 16-bit resolution provides excellent accuracy for precise measurements.
- 16-Channel Multiplexing: Allows monitoring of many analog signals with a single ADC, reducing system cost and complexity.
- Wide Temperature Range: -40°C to 125°C operation makes it suitable for harsh automotive and industrial environments.
- Flexible Serial Interface: Compatible with SPI, QSPI, MICROWIRE, and DSP interfaces for easy integration.
Multi-Channel Data Acquisition
The AD4696BCPZ-RL7's 16 channels and 1M SPS sampling rate make it ideal for large-scale data acquisition systems in industrial automation and process control, where many sensors need to be monitored.
Power System Monitoring
In power grid monitoring, the ADC can digitize voltage and current from multiple phases simultaneously, enabling accurate power quality analysis and protection systems.
Medical Instrumentation
For patient monitoring systems, the 16-bit resolution and multiple channels allow for precise measurement of various vital signs, such as ECG and EEG signals.
Automotive Sensor Fusion
With its wide temperature range and multiple channels, this ADC is suitable for automotive applications, digitizing signals from various sensors like temperature, pressure, and position.
Environmental Monitoring
The device can be used in environmental monitoring stations to collect data from multiple sensors (e.g., weather, air quality) with high precision and reliability.
- Q: What is the AD4696BCPZ-RL7?
- A: It is a 16-bit, 16-channel analog-to-digital converter (ADC) from Analog Devices with a MUX-ADC architecture.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 1M SPS (1 MSPS).
- Q: How many input channels does it have?
- A: It has 16 input channels.
- Q: What interfaces are supported?
- A: It supports DSP, MICROWIRE, QSPI, Serial, and SPI interfaces.
- Q: What is the reference type?
- A: It requires an External reference.
- Q: What is the operating temperature range?
- A: It operates over a wide temperature range of -40°C to 125°C.
