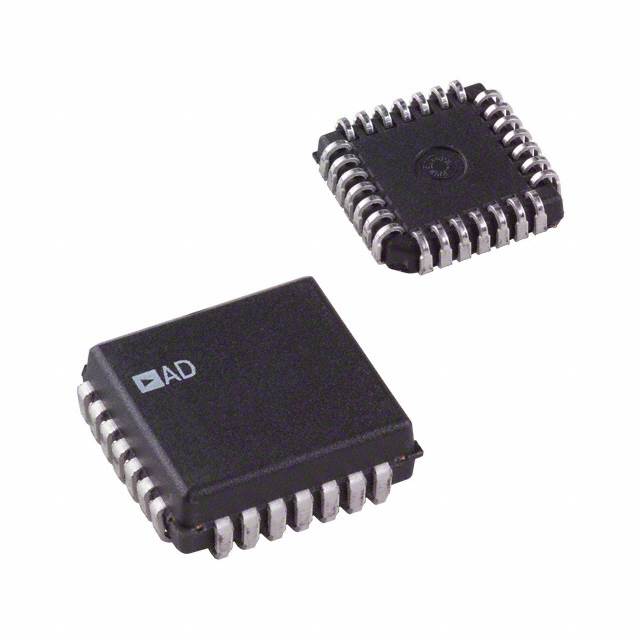

Analog Devices Inc. AD569JPZ
Regular price
$383.61
Regular price
$95.90
Sale price
$383.61
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $383.61 | $383.61 |
| 15+ | $88.23 | $1,323.45 |
| 25+ | $86.31 | $2,157.75 |
| 50+ | $81.52 | $4,076.00 |
| 100+ | $71.93 | $7,193.00 |
| N+ | $14.39 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 6µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±10.8V ~ 13.2V |
| Voltage - Supply, Digital | - |
| INL/DNL (LSB) | ±0.02, ±0.5 |
| Architecture | Segmented DAC |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| ROHS |  |
AD569JPZ.pdf
×
