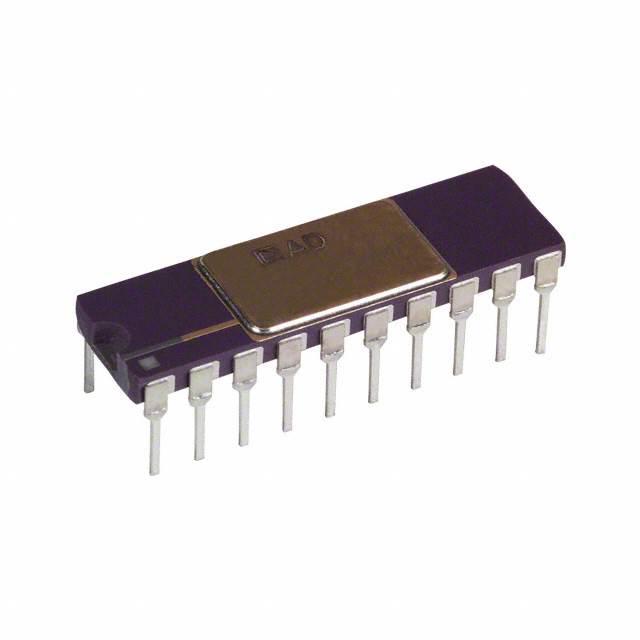

Analog Devices Inc. AD573SD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $498.52 | $498.52 |
| 15+ | $482.78 | $7,241.70 |
| 25+ | $472.28 | $11,807.00 |
| 50+ | $446.05 | $22,302.50 |
| 100+ | $393.57 | $39,357.00 |
| N+ | $78.71 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | +4.5V ~ 7V, -12V ~ 16.5V |
| Voltage - Supply, Digital | +4.5V ~ 7V, -12V ~ 16.5V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CDIP |
| ROHS |  |
The AD573SD from Analog Devices is a 10-bit analog-to-digital converter designed for precision applications. It features a single input channel and a sample-and-hold architecture, ensuring accurate signal capture. The device includes an internal voltage reference, simplifying system design by reducing external components. Data is output via a parallel interface. Housed in a 20-pin CDIP package, it is specified for the military temperature range of -55°C to 125°C, making it a dependable choice for high-reliability industrial and aerospace systems.
- Higher Resolution: 10-bit resolution offers finer precision compared to 8-bit ADCs, enabling more accurate measurements in control and instrumentation.
- Integrated Reference: The internal voltage reference eliminates the need for an external precision reference, saving board space and reducing BOM cost.
- Wide Temperature Operation: The -55°C to 125°C range ensures reliable performance in harsh military and industrial environments.
- Simple Parallel Output: The parallel interface allows for straightforward connection to microcontrollers and DSPs for fast data readout.
Precision Industrial Control
The 10-bit resolution provides finer granularity for industrial control systems, enabling more precise monitoring and adjustment of analog parameters like temperature and pressure.
Data Logging Systems
With its internal reference and parallel interface, the AD573SD simplifies the design of multi-channel data loggers for long-term environmental or process monitoring.
Military and Aerospace Instrumentation
Rated for -55°C to 125°C, this ADC is suitable for onboard instrumentation in military vehicles and aircraft where extreme temperature variations are common.
Medical Device Calibration
The higher resolution and internal reference make it useful in medical devices that require accurate calibration and stable performance over time.
Test and Measurement Equipment
For benchtop multimeters and precision measurement tools, the AD573SD offers reliable 10-bit conversion with a simple parallel interface for easy integration.
- Q: What is the resolution of the AD573SD?
- A: The AD573SD is a 10-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is not specified in the provided technical data.
- Q: How many channels does it have?
- A: It features a single (1) input channel.
- Q: What interface does it use?
- A: It uses a parallel interface for data output.
- Q: What is the reference type?
- A: It has an internal voltage reference.
- Q: What is the operating temperature range?
- A: It operates over the military temperature range of -55°C to 125°C.
