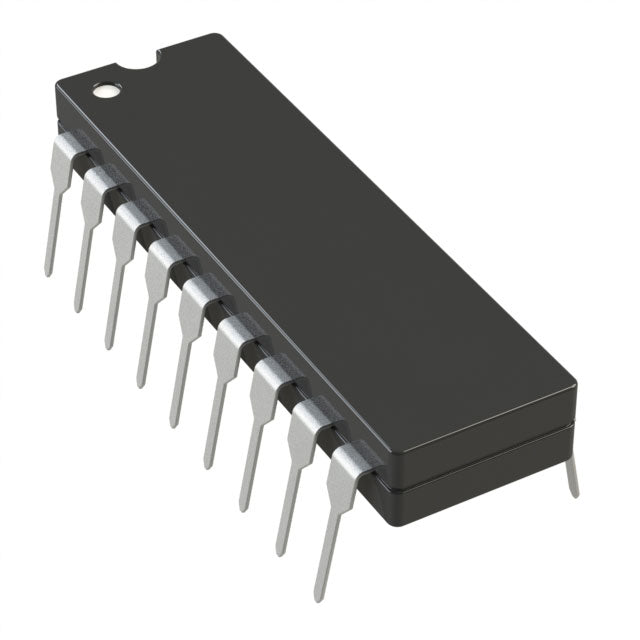

Analog Devices Inc. AD670JNZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $44.23 | $44.23 |
| 15+ | $42.84 | $642.60 |
| 25+ | $41.90 | $1,047.50 |
| 50+ | $39.58 | $1,979.00 |
| 100+ | $34.92 | $3,492.00 |
| N+ | $6.98 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | True Bipolar |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
The AD670JNZ from Analog Devices is an 8-bit analog-to-digital converter featuring 2 input channels and a parallel interface. It includes an internal reference, simplifying circuit design. Operating over 0°C to 70°C, it is housed in a 20-DIP package. Typical applications include industrial sensor digitization, data acquisition, and embedded control systems.
- Integrated internal reference reduces external component count and simplifies PCB layout.
- Dual-channel input enables multiplexed measurement of two signals without additional hardware.
- Parallel interface allows direct connection to legacy 8-bit microprocessors and DSPs.
- DIP package facilitates easy prototyping and through-hole assembly.
Industrial Sensor Digitization
The AD670JNZ's 8-bit resolution and 2-channel input make it suitable for digitizing analog sensor signals in industrial control systems, where moderate accuracy is acceptable.
Data Acquisition Systems
With its parallel interface and internal reference, the AD670JNZ simplifies the design of data acquisition boards for legacy 8-bit bus systems.
Embedded Control Loops
In microcontroller-based control loops, the AD670JNZ provides fast, simple digital conversion of analog feedback signals without requiring external reference circuitry.
Battery Monitoring
The dual channels allow monitoring of two battery voltages or currents in power management applications, with the internal reference reducing component count.
Educational Prototyping
Its DIP package and straightforward parallel interface make the AD670JNZ ideal for teaching ADC fundamentals in university labs.
- Q: What type of ADC is the AD670JNZ?
- A: The AD670JNZ is an 8-bit analog-to-digital converter with a parallel interface and internal reference.
- Q: What is the resolution of the AD670JNZ?
- A: The AD670JNZ has a resolution of 8 bits.
- Q: How many input channels does the AD670JNZ have?
- A: The AD670JNZ features 2 input channels.
- Q: What interface does the AD670JNZ use?
- A: It uses a parallel interface for data output.
- Q: What is the operating temperature range?
- A: The AD670JNZ operates from 0°C to 70°C.
- Q: What package is the AD670JNZ available in?
- A: It comes in a 20-DIP (0.300", 7.62mm) package.
