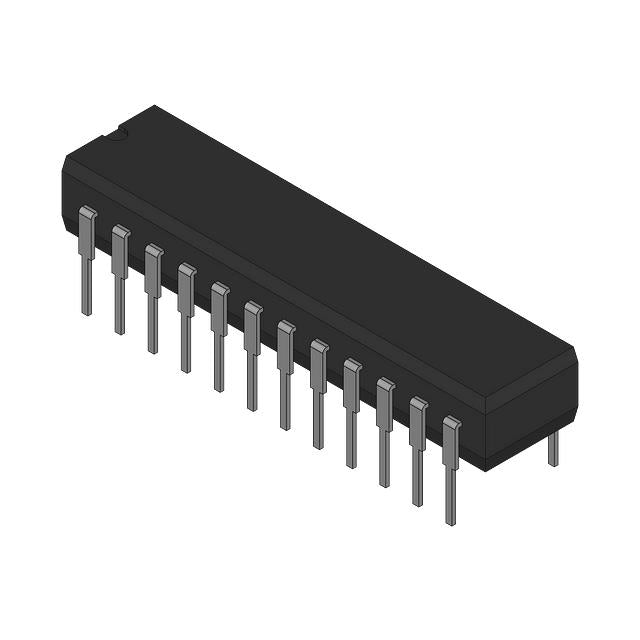

Analog Devices Inc. AD671KD-500
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $260.00 | $260.00 |
| 15+ | $59.80 | $897.00 |
| 25+ | $58.50 | $1,462.50 |
| 50+ | $55.25 | $2,762.50 |
| 100+ | $48.75 | $4,875.00 |
| N+ | $9.75 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD671 |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 2M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | - |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | - |
| Architecture | Flash |
| Reference Type | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP |
The AD671KD-500 from Analog Devices is a 12-bit analog-to-digital converter capable of sampling at 2 MSPS. It features a single input channel and a parallel interface for high-speed data transfer. The device requires an external reference, giving designers control over the input voltage range. Housed in a 24-pin ceramic CDIP package, it operates from 0°C to 70°C, making it suitable for commercial data acquisition, imaging, and telecommunications applications where speed and accuracy are essential.
- Fast Sampling: 2 MSPS throughput enables real-time digitization of high-frequency signals.
- Parallel Output: Immediate data availability without serial clock latency, ideal for high-speed DSP interfaces.
- External Reference: Allows precise scaling of input range to match sensor output levels.
- Robust Package: Ceramic CDIP provides mechanical strength and thermal stability for long-term reliability.
High-Speed Data Acquisition
The 2 MSPS sampling rate and 12-bit resolution make the AD671KD-500 ideal for digitizing fast transient signals in laboratory DAQ systems.
Industrial Imaging
In machine vision cameras, this ADC converts CCD/CMOS sensor outputs at high speed, enabling real-time inspection in manufacturing lines.
Medical Imaging Equipment
For ultrasound and X-ray systems, the 2 MSPS rate supports high-frame-rate image capture with 12-bit grayscale resolution.
Telecommunications
In base station receivers, the AD671KD-500 digitizes IF signals with sufficient speed for digital down-conversion in 3G/4G systems.
Test and Measurement Instruments
Digital oscilloscopes and waveform digitizers use this ADC to capture high-frequency waveforms with 12-bit vertical resolution.
Motor Control
In servo drives, the parallel interface allows fast reading of current and position sensors, enabling high-bandwidth control loops.
- Q: What is the AD671KD-500?
- A: It is a 12-bit ADC from Analog Devices with a sampling rate of 2 MSPS, designed for high-speed data conversion.
- Q: What is the resolution and sampling rate?
- A: It provides 12-bit resolution with a maximum sampling rate of 2 MSPS (2 million samples per second).
- Q: How many channels does it have?
- A: It has a single input channel (1 channel) for dedicated signal conversion.
- Q: What interface does it use?
- A: It uses a parallel interface for fast data transfer to microprocessors or DSPs.
- Q: Does it require an external reference?
- A: Yes, it requires an external reference voltage, allowing the user to set the full-scale input range.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C, suitable for commercial applications.
