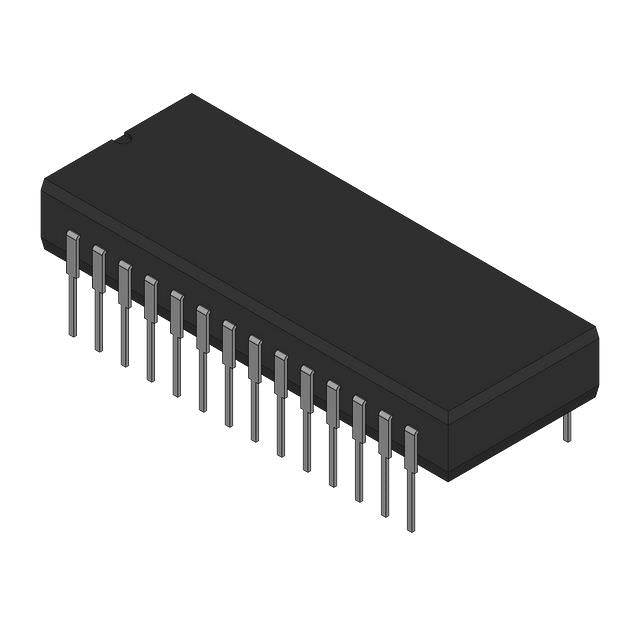

Analog Devices Inc. AD674ALD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $266.96 | $266.96 |
| 15+ | $61.40 | $921.00 |
| 25+ | $60.07 | $1,501.75 |
| 50+ | $56.73 | $2,836.50 |
| 100+ | $50.06 | $5,006.00 |
| N+ | $10.01 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD674 |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | - |
| Voltage - Supply, Digital | - |
| Features | - |
| Operating Temperature | - |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.605", 15.37mm) |
| Supplier Device Package | 28-CDIP |
The AD674ALD from Analog Devices is a 12-bit dual-channel analog-to-digital converter featuring a parallel interface. Its S/H-ADC architecture ensures accurate sampling of analog signals, while support for both external and internal references offers design flexibility. Housed in a rugged 28-CDIP package, this ADC is built for industrial and military applications where reliability is paramount. The dual-channel design enables simultaneous data acquisition, making it a versatile choice for process control and instrumentation.
- Dual-Channel Sampling: Two channels allow synchronized acquisition, reducing system complexity in multi-sensor applications.
- Rugged Package: The ceramic DIP package provides superior environmental protection for harsh operating conditions.
- Flexible Reference: Internal or external reference options enable precision tuning for specific accuracy requirements.
- Legacy Compatibility: Parallel interface simplifies integration with existing 8-bit and 16-bit microprocessors.
- Proven Reliability: Analog Devices' mature 12-bit ADC technology ensures long-term stability.
Industrial Process Control
The 12-bit resolution and parallel interface allow direct connection to legacy microcontrollers in PLCs, providing reliable conversion for temperature and pressure sensors.
Data Acquisition Systems
With dual channels and S/H architecture, it can sample two synchronized signals, making it suitable for vibration analysis and power monitoring.
Military and Aerospace
The hermetic CDIP package ensures protection against moisture and contaminants, ideal for avionics and defense electronics requiring high reliability.
Medical Instrumentation
Its internal reference simplifies circuit design in patient monitoring devices, delivering stable 12-bit conversion for ECG and EEG signals.
Automotive Test Equipment
The robust package and dual-channel capability support simultaneous measurement of voltage and current in battery test systems.
Scientific Research
External reference capability allows calibration to precision standards, enhancing measurement accuracy in laboratory experiments.
- Q: What is the resolution of the AD674ALD?
- A: The AD674ALD is a 12-bit analog-to-digital converter.
- Q: How many channels does it have?
- A: It has 2 input channels.
- Q: What interface does it use?
- A: It uses a parallel interface for data output.
- Q: What is the architecture?
- A: It uses a Sample-and-Hold (S/H) ADC architecture.
- Q: What reference options are available?
- A: Both external and internal references are supported.
- Q: What is the package type?
- A: It comes in a 28-CDIP (0.605", 15.37mm) package.
