Analog Devices Inc. AD7091BCPZ-RL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.40 | $10.40 |
| 15+ | $2.39 | $35.85 |
| 25+ | $2.34 | $58.50 |
| 50+ | $2.21 | $110.50 |
| 100+ | $1.95 | $195.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI, DSP |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.09V ~ 5.25V |
| Voltage - Supply, Digital | 2.09V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

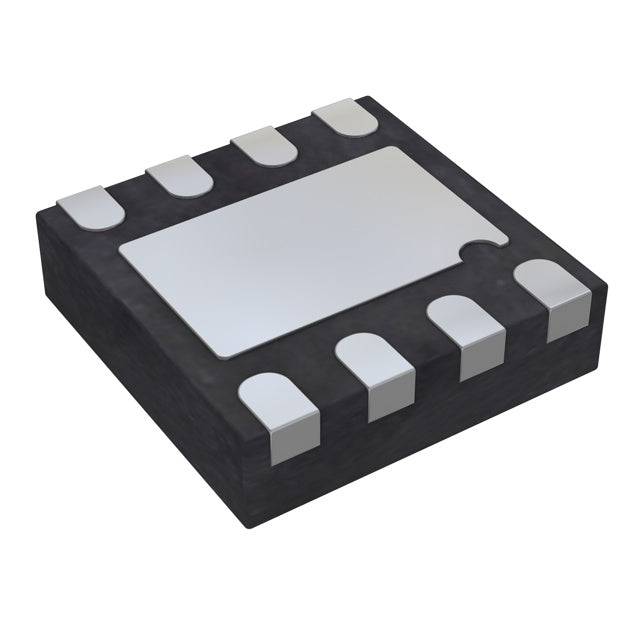

| Package / Case | 8-UFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-UD (2x2) |
| ROHS |  |
The AD7091BCPZ-RL is a fast, 12-bit analog-to-digital converter from Analog Devices, capable of sampling at 1 MSPS. It features a single input channel and a successive approximation architecture (S/H-ADC). The device supports both SPI and DSP-compatible serial interfaces, offering flexibility in system design. Housed in a compact 8-UFDFN package, it operates over a wide temperature range, making it suitable for automotive, industrial, and high-speed data acquisition applications.
- High-Speed Sampling: 1 MSPS rate enables capture of fast-changing signals for real-time control and measurement.
- Flexible Interface: Supports both SPI and DSP serial interfaces, ensuring compatibility with a wide range of microcontrollers and DSPs.
- Wide Temperature Range: Operates from -40°C to 125°C, suitable for harsh automotive and industrial environments.
- Compact Footprint: The 8-UFDFN CSP package is ideal for space-constrained portable and embedded designs.
High-Speed Data Acquisition
With a 1 MSPS sampling rate and 12-bit resolution, the AD7091BCPZ-RL is ideal for high-speed data acquisition systems in industrial and test equipment, capturing fast transient signals accurately.
Motor Control Feedback
In motor control applications, the fast sampling rate allows for precise current and voltage sensing, enabling efficient and responsive control loops in variable speed drives and robotics.
Portable Medical Devices
The small 8-UFDFN package and wide temperature range (-40°C to 125°C) make it suitable for portable medical devices like glucose monitors and pulse oximeters that require reliable performance in varying conditions.
Automotive Sensor Interfaces
For automotive applications, the AD7091B can digitize signals from pressure, temperature, and position sensors, providing critical data to engine control units (ECUs) with high speed and accuracy.
Communication Systems
In base stations and communication infrastructure, this ADC's high speed and SPI/DSP interface facilitate the digitization of I/Q signals in software-defined radio (SDR) and other signal processing chains.
- Q: What type of ADC is the AD7091BCPZ-RL?
- A: It is a 12-bit successive approximation (S/H-ADC) analog-to-digital converter.
- Q: What is the resolution?
- A: The resolution is 12 bits.
- Q: What is the maximum sampling rate?
- A: The sampling rate is 1 MSPS (1 million samples per second).
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interfaces are supported?
- A: It supports both SPI and DSP-compatible serial interfaces.
- Q: What is the package type?
- A: It comes in an 8-UFDFN exposed pad CSP package.
