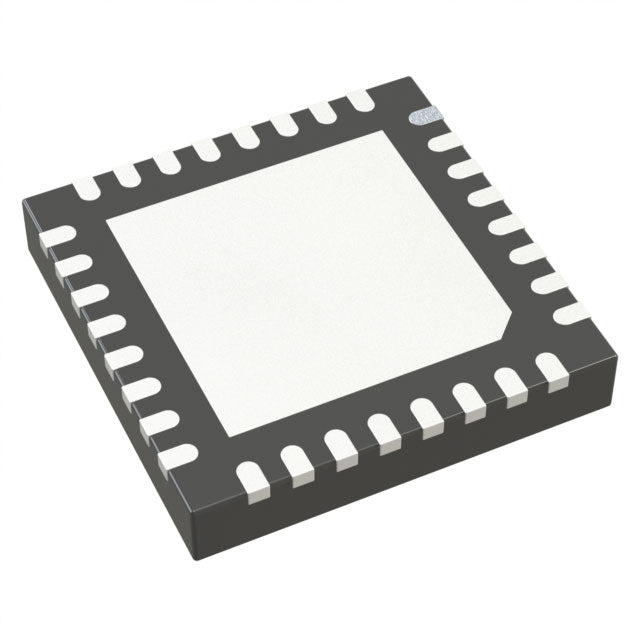

Analog Devices Inc. AD7124-8BBCPZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $15.39 | $15.39 |
| 15+ | $14.90 | $223.50 |
| 25+ | $14.58 | $364.50 |
| 50+ | $13.77 | $688.50 |
| 100+ | $12.15 | $1,215.00 |
| N+ | $2.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 19.2k |
| Number of Inputs | 8, 15, 16 |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Data Interface | DSP, MICROWIRE™, QSPI™, and SPI™ |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±1.8V, 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Features | PGA, Temperature Sensor |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP (5x5) |
| ROHS |  |
The AD7124-8BBCPZ is a versatile 24-bit sigma-delta analog-to-digital converter from Analog Devices. It features an integrated multiplexer and programmable gain amplifier (PGA), supporting up to 16 input channels. With a maximum sampling rate of 19.2 kSPS and multiple digital interfaces including SPI, QSPI, MICROWIRE, and DSP, it offers excellent flexibility for a wide range of applications. The device operates over -40°C to +125°C and is housed in a 32-VFQFN package, making it ideal for industrial, medical, and automotive systems.
- Exceptional Accuracy: 24-bit sigma-delta conversion delivers high-precision results.
- Integrated PGA: Allows direct connection to low-level sensors without external amplification.
- High Channel Count: Supports up to 16 inputs, ideal for multi-sensor systems.
- Flexible Communication: Multiple interface options ensure easy integration.
- Robust Operating Range: -40°C to +125°C for demanding environments.
Precision Data Acquisition
The 24-bit resolution and integrated PGA make the AD7124-8BBCPZ ideal for high-accuracy data acquisition systems in industrial and laboratory settings.
Temperature Sensing with RTDs and Thermocouples
Its high resolution and low noise are perfect for precise temperature measurement, supporting direct interface with RTDs and thermocouples.
Bridge Sensor Interfaces
The programmable gain amplifier allows direct connection to strain gauge bridges, enabling accurate force and pressure measurements.
Multi-Channel Monitoring Systems
With up to 16 channels, it can monitor multiple analog signals in a single device, reducing system complexity.
Portable Medical Devices
The low power consumption and high precision make it suitable for battery-powered medical instruments like glucose meters and pulse oximeters.
Industrial Automation
It provides reliable analog-to-digital conversion for PLCs and industrial controllers, ensuring accurate process monitoring.
- Q: What is the AD7124-8BBCPZ?
- A: It is a 24-bit sigma-delta ADC with a MUX-PGA-ADC architecture, integrating a multiplexer and programmable gain amplifier.
- Q: What is the resolution?
- A: The AD7124-8BBCPZ provides 24-bit resolution for high-precision measurements.
- Q: What is the sampling rate?
- A: It supports a maximum sampling rate of 19.2 kSPS.
- Q: How many channels are available?
- A: It can be configured for 8, 15, or 16 input channels.
- Q: What digital interfaces does it support?
- A: It supports DSP, MICROWIRE™, QSPI™, and SPI™ interfaces.
- Q: What is the package type?
- A: It comes in a 32-VFQFN Exposed Pad, CSP package.
