Analog Devices Inc. AD7142ACPZ-500RL7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 20.61 | Dhs. 20.61 |
| 15+ | Dhs. 19.95 | Dhs. 299.25 |
| 25+ | Dhs. 19.52 | Dhs. 488.00 |
| 50+ | Dhs. 18.44 | Dhs. 922.00 |
| 100+ | Dhs. 16.27 | Dhs. 1,627.00 |
| N+ | Dhs. 3.25 | Price Inquiry |
Request Quote / Inquiry
AD7142ACPZ-500RL7 - High-Performance Capacitance-to-Digital Converter
The AD7142ACPZ-500RL7 from Analog Devices is a precision 14-channel capacitance-to-digital converter designed for advanced touch sensing, proximity detection, and capacitive measurement applications in industrial, automotive, and medical systems.
Key Features
- 14 Independent Channels - Multi-sensor capability for complex touch interfaces
- 16-Bit Resolution - High-precision capacitance measurement
- 250kSPS Sampling Rate - Fast response for real-time applications
- SPI Interface - Easy integration with microcontrollers and processors
- Wide Operating Range - Functions from -40°C to 85°C
- Low Power Operation - Single supply 2.6V to 3.6V

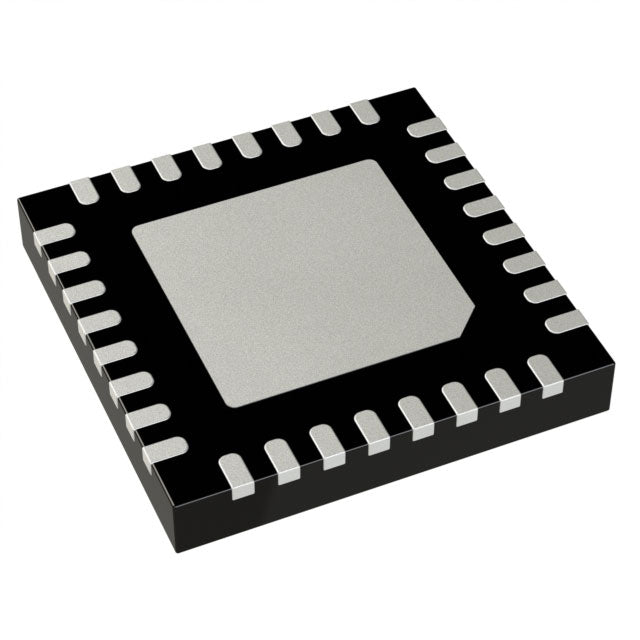

- Compact Package - 32-LFCSP-VQ (5x5mm) surface mount design
- RoHS Compliant - Meets environmental standards
Applications
Ideal for capacitive touch panels, proximity sensors, liquid level detection, industrial HMI systems, medical equipment interfaces, and automotive control panels.
Design Support
Full technical documentation, reference designs, and application notes available. Our engineering team provides design-in support for seamless integration into your projects.
Packaging Options
Available in Cut Tape (CT) and Tape & Reel (TR) for production-scale requirements.
All specifications subject to manufacturer's datasheet. Contact our team for volume pricing, lead times, and technical support.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Capacitance-to-Digital Converter |
| Number of Channels | 14 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 250k |
| Data Interface | SPI |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.6V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-VQ (5x5) |
| ROHS |  |
AD7142ACPZ-500RL7.pdf
