Analog Devices Inc. AD7147A-1ACBZ-RL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,904.94 | Dhs. 355,904.94 |
| 15+ | Dhs. 344,665.84 | Dhs. 5,169,987.60 |
| 25+ | Dhs. 337,173.10 | Dhs. 8,429,327.50 |
| 50+ | Dhs. 318,441.26 | Dhs. 15,922,063.00 |
| 100+ | Dhs. 280,977.59 | Dhs. 28,097,759.00 |
| N+ | Dhs. 56,195.52 | Price Inquiry |
Request Quote / Inquiry
AD7147A-1ACBZ-RL - CapTouch™ Capacitance-to-Digital Converter
The AD7147A-1ACBZ-RL from Analog Devices is a high-performance 16-bit capacitance-to-digital converter designed for advanced capacitive touch sensing applications in industrial, automotive, and consumer electronics. This precision sensor IC features 13 independent channels with 250kSPS sampling rate, enabling responsive multi-touch interfaces and proximity detection.
Key Features & Benefits
- 13-Channel Capacitive Sensing: Support for complex touch interfaces and button arrays
- 16-Bit Resolution: High-precision measurements for accurate touch detection and gesture recognition
- Fast 250kSPS Sampling: Responsive performance for real-time touch applications
- I2C & Serial Interface: Easy integration with microcontrollers and embedded systems
- Wide Operating Range: -40°C to 85°C for industrial and automotive applications
- Low-Power Single Supply: 2.6V to 3.6V operation for battery-powered devices
- Compact 25-WLCSP Package: Space-saving 2.25mm x 2.05mm footprint for dense PCB layouts
Typical Applications
Ideal for capacitive touch buttons, sliders, wheels, proximity sensors, liquid level sensing, industrial HMI panels, automotive interior controls, medical device interfaces, and consumer appliance touch panels.
Why Choose HQICKEY
As an authorized distributor, we provide 100% genuine Analog Devices components with full manufacturer traceability, comprehensive datasheets, reference designs, and technical support. All units ship with authenticity guarantees and are backed by long lifecycle availability to support your product programs and mitigate obsolescence risk.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | CapTouch™ |
| Packaging | | |
| Type | Capacitance-to-Digital Converter |
| Number of Channels | 13 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 250k |
| Data Interface | I2C, Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.6V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

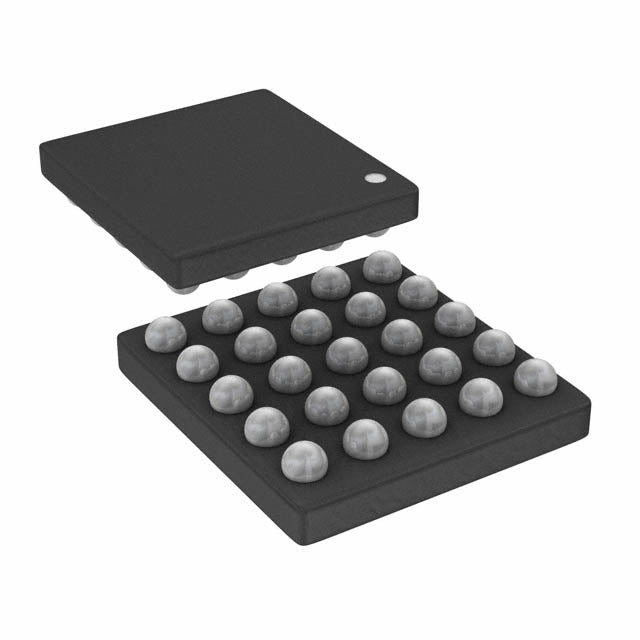

| Package / Case | 25-UFBGA, WLCSP |
| Supplier Device Package | 25-WLCSP (2.25x2.05) |
AD7147A-1ACBZ-RL.pdf
