Analog Devices Inc. AD7147A-1ACBZ500R7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,904.94 | Dhs. 355,904.94 |
| 15+ | Dhs. 344,665.84 | Dhs. 5,169,987.60 |
| 25+ | Dhs. 337,173.10 | Dhs. 8,429,327.50 |
| 50+ | Dhs. 318,441.26 | Dhs. 15,922,063.00 |
| 100+ | Dhs. 280,977.59 | Dhs. 28,097,759.00 |
| N+ | Dhs. 56,195.52 | Price Inquiry |
Request Quote / Inquiry
AD7147A-1ACBZ500R7 - CapTouch™ Capacitance-to-Digital Converter
The AD7147A-1ACBZ500R7 from Analog Devices is a high-performance 16-bit capacitance-to-digital converter designed for advanced capacitive touch sensing applications. This precision sensor IC features 13 input channels with 250kSPS sampling rate and I2C/Serial interface, making it ideal for aerospace, automotive, industrial HMI, and consumer electronics applications requiring reliable touch input detection.
Key Features & Benefits
- 13-Channel Capacitive Sensing: Multi-touch capability for complex user interface designs
- 16-Bit Resolution: High-precision measurement for accurate touch detection and proximity sensing
- 250kSPS Sampling Rate: Fast response time for responsive touch interfaces
- I2C & Serial Interface: Easy integration with microcontrollers and embedded systems
- Low Power Operation: 2.6V to 3.6V single supply voltage for battery-powered applications
- Wide Temperature Range: -40°C to +85°C operation for industrial and automotive environments

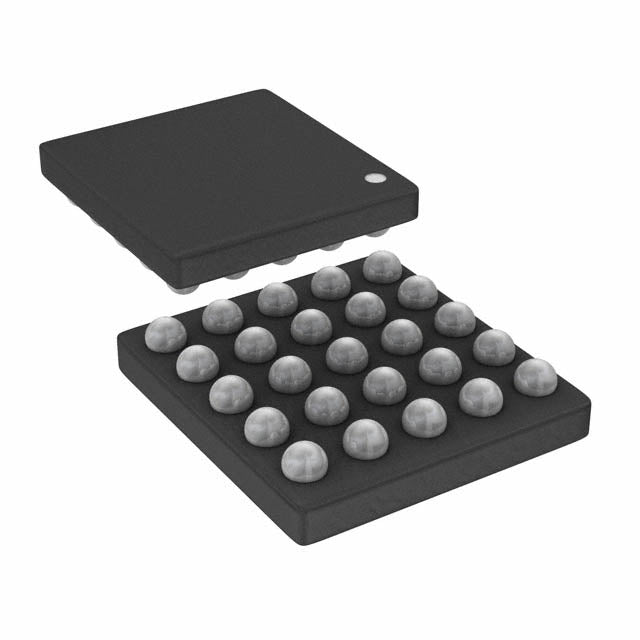

- Compact Package: 25-WLCSP (2.25x2.05mm) surface mount package saves board space
Applications
This capacitive touch controller is perfect for industrial control panels, automotive infotainment systems, medical devices, white goods appliances, and any application requiring reliable, durable touch sensing in challenging environments.
Authorized Distributor - Full Traceability
We supply genuine Analog Devices components with complete manufacturer documentation, certificates of conformance, and full supply chain traceability. All parts are sourced through authorized channels with long lifecycle support to protect your design investment.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | CapTouch™ |
| Packaging | | |
| Type | Capacitance-to-Digital Converter |
| Number of Channels | 13 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 250k |
| Data Interface | I2C, Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.6V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 25-UFBGA, WLCSP |
| Supplier Device Package | 25-WLCSP (2.25x2.05) |
AD7147A-1ACBZ500R7.pdf
