Analog Devices Inc. AD7147PACPZ-1500R7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 19.71 | Dhs. 19.71 |
| 15+ | Dhs. 19.09 | Dhs. 286.35 |
| 25+ | Dhs. 18.68 | Dhs. 467.00 |
| 50+ | Dhs. 17.64 | Dhs. 882.00 |
| 100+ | Dhs. 15.56 | Dhs. 1,556.00 |
| N+ | Dhs. 3.11 | Price Inquiry |
Request Quote / Inquiry

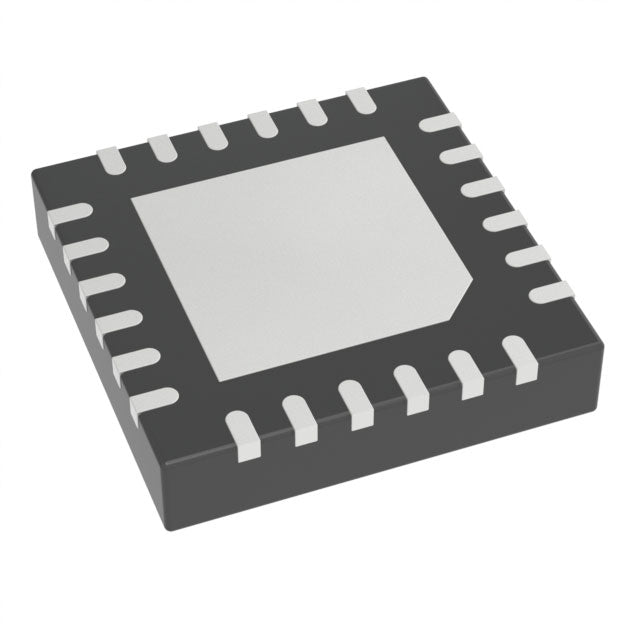

AD7147PACPZ-1500R7 CapTouch™ Capacitance-to-Digital Converter
The AD7147PACPZ-1500R7 from Analog Devices is a high-performance 13-channel capacitance-to-digital converter designed for advanced touch sensing and proximity detection applications. This CapTouch™ series IC delivers exceptional sensitivity and accuracy with 16-bit resolution and a 250kSPS sampling rate, making it ideal for industrial controls, consumer electronics, automotive interfaces, and medical devices.
Key Features & Benefits
- 13 Independent Channels - Supports multi-touch and complex sensor configurations
- 16-bit Resolution - Provides precise capacitance measurements for accurate touch detection
- 250kSPS Sampling Rate - Enables fast response times for responsive user interfaces
- I2C Serial Interface - Simplifies integration with microcontrollers and processors
- Single Supply Operation - Works with 2.6V to 3.6V supply voltage for flexible power design
- Wide Operating Temperature - Rated for -40°C to 85°C for industrial and automotive applications
- Compact 24-LFCSP Package - Space-efficient 4x4mm footprint for dense PCB layouts
- RoHS Compliant - Meets environmental standards for global markets
Applications
Perfect for touch panels, proximity sensors, liquid level detection, position sensing, industrial HMI, automotive controls, medical equipment interfaces, and consumer appliance touch controls.
Datasheet: Full technical documentation and design resources are available to support your engineering needs.
Related Products & Resources
Explore our complete range of ADCs/DACs - Special Purpose components for your design needs. Browse thousands of high-reliability semiconductor components at HQICKEY, your trusted source for authorized electronic components with full traceability and compliance. For technical insights, application notes, and industry updates, visit our Technical Blog.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | CapTouch™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Capacitance-to-Digital Converter |
| Number of Channels | 13 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 250k |
| Data Interface | I2C, Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.6V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| ROHS |  |
AD7147PACPZ-1500R7.pdf
