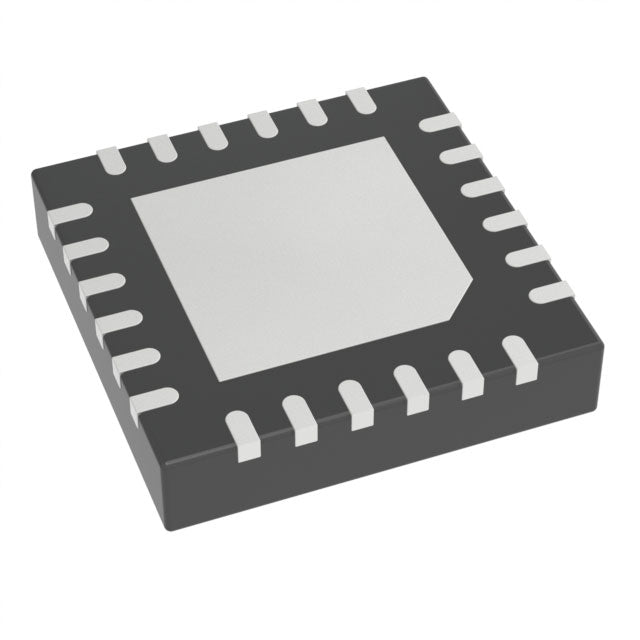

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
AD7147PACPZ-1RL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.31 AED | Dhs. 7.31 AED |
| 15+ | Dhs. 7.07 AED | Dhs. 106.05 AED |
| 25+ | Dhs. 6.91 AED | Dhs. 172.75 AED |
| 50+ | Dhs. 6.53 AED | Dhs. 326.50 AED |
| 100+ | Dhs. 5.76 AED | Dhs. 576.00 AED |
| N+ | Dhs. 1.15 AED | Price Inquiry |
Couldn't load pickup availability
AD7147PACPZ-1RL Capacitance-to-Digital Converter
The AD7147PACPZ-1RL from Analog Devices is a high-performance 13-channel capacitive touch controller featuring 16-bit resolution and 250kSPS sampling rate. This CapTouch™ series device provides precise capacitance-to-digital conversion for advanced touch sensing applications in industrial, automotive, medical, and consumer electronics.
Key Features:
- 13 Independent Channels - Multi-touch capability for complex interface designs
- 16-Bit Resolution - High-precision sensing for accurate touch detection
- 250kSPS Sampling Rate - Fast response time for responsive user interfaces
- I2C & Serial Interface - Easy integration with microcontrollers and processors
- Wide Operating Range - -40°C to 85°C for industrial-grade reliability
- Low Power Operation - 2.6V to 3.6V single supply voltage
- Compact Package - 24-LFCSP (4x4mm) surface mount for space-constrained designs
- RoHS Compliant - Environmentally friendly and regulation-ready
Applications:
Ideal for capacitive touch buttons, sliders, wheels, proximity sensing, liquid level detection, and human-machine interfaces across aerospace, automotive, telecommunications, medical devices, and industrial control systems.
Datasheet & Resources: Full technical documentation and application notes available from Analog Devices.
Quality Assurance: All components are sourced directly from authorized distributors with full traceability and lifecycle support for long-term availability in critical applications.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | CapTouch™ |
| Packaging | Tape & Reel (TR) | |
| Type | Capacitance-to-Digital Converter |
| Number of Channels | 13 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 250k |
| Data Interface | I2C, Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.6V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| ROHS |  |
AD7147PACPZ-1RL.pdf
