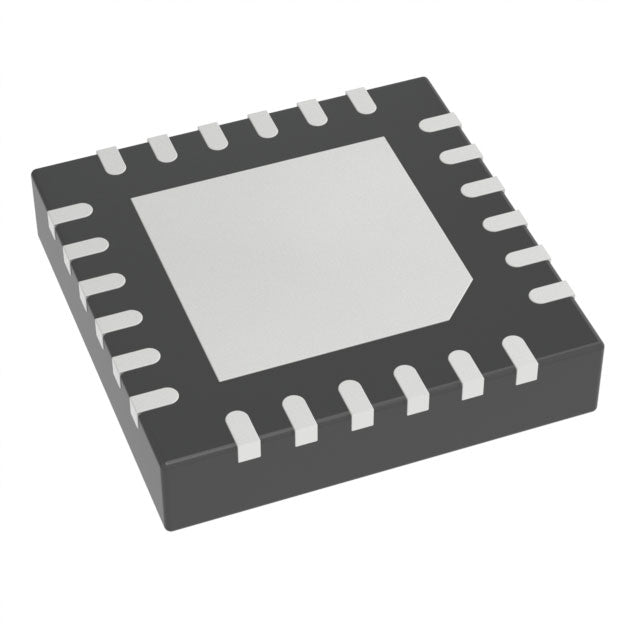

Analog Devices Inc. AD7147PACPZ-500R7
Regular price
Dhs. 19.71
Regular price
Dhs. 20.75
Sale price
Dhs. 19.71
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 19.71 | Dhs. 19.71 |
| 15+ | Dhs. 19.09 | Dhs. 286.35 |
| 25+ | Dhs. 18.68 | Dhs. 467.00 |
| 50+ | Dhs. 17.64 | Dhs. 882.00 |
| 100+ | Dhs. 15.56 | Dhs. 1,556.00 |
| N+ | Dhs. 3.11 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
AD7147PACPZ-500R7 - High-Performance Capacitive Touch Sensor IC
The AD7147PACPZ-500R7 from Analog Devices is a precision 13-channel capacitance-to-digital converter designed for advanced touch-sensing applications. Part of the industry-leading CapTouch™ series, this IC delivers exceptional sensitivity and noise immunity for capacitive touch interfaces in industrial, automotive, medical, and consumer electronics.
Key Features & Benefits
- 13 Independent Channels - Support complex multi-touch and proximity sensing designs
- 16-Bit Resolution - Exceptional sensitivity for detecting even the slightest touch or proximity events
- 250kSPS Sampling Rate - Fast response time for real-time touch detection
- SPI Digital Interface - Easy integration with microcontrollers and processors
- Wide Operating Range - Functions reliably from -40°C to 85°C for harsh environments
- Low Power Operation - Single supply 2.6V to 3.6V for battery-powered applications
- Compact 24-LFCSP Package - Space-saving 4x4mm footprint for dense PCB layouts
- RoHS Compliant - Meets environmental standards for global distribution
Applications
Ideal for industrial HMI panels, automotive touch controls, medical equipment interfaces, consumer appliances, and proximity sensing systems requiring high reliability and precision.
Documentation & Support
Full datasheet, reference designs, and technical support available. Authorized distributor with full traceability and compliance documentation.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | CapTouch™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Capacitance-to-Digital Converter |
| Number of Channels | 13 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 250k |
| Data Interface | SPI |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.6V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| ROHS |  |
AD7147PACPZ-500R7.pdf
×
