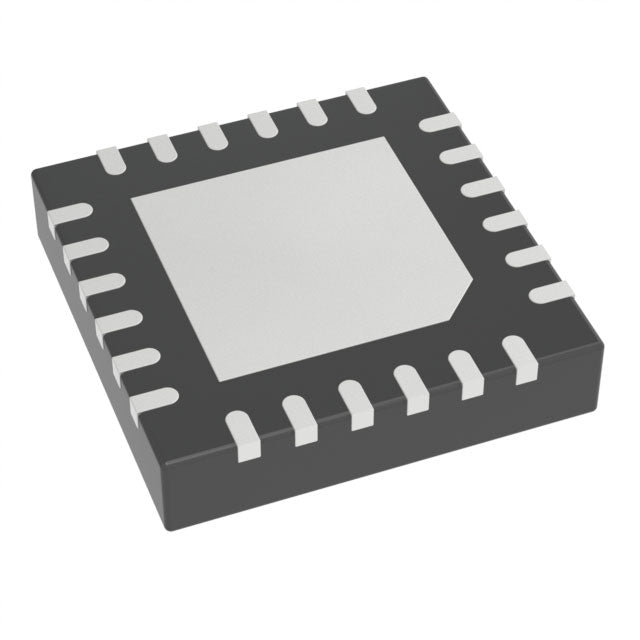

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
AD7147PACPZ-RL
Regular price
Dhs. 7.31
Regular price
Dhs. 7.68
Sale price
Dhs. 7.31
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.31 AED | Dhs. 7.31 AED |
| 15+ | Dhs. 7.07 AED | Dhs. 106.05 AED |
| 25+ | Dhs. 6.91 AED | Dhs. 172.75 AED |
| 50+ | Dhs. 6.53 AED | Dhs. 326.50 AED |
| 100+ | Dhs. 5.76 AED | Dhs. 576.00 AED |
| N+ | Dhs. 1.15 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Recycling Electronic Components
AD7147PACPZ-RL - High-Performance Capacitive Touch Sensor Controller
The AD7147PACPZ-RL from Analog Devices is a precision 13-channel capacitance-to-digital converter designed for advanced touch sensing and proximity detection applications. Part of the industry-leading CapTouch™ series, this IC delivers exceptional sensitivity and noise immunity for mission-critical designs in aerospace, automotive, industrial control, medical devices, and telecommunications equipment.
Key Features & Benefits
- 13 Independent Channels - Support complex multi-touch interfaces and sensor arrays
- 16-bit Resolution - Precise capacitance measurement for reliable touch detection
- 250kSPS Sampling Rate - Fast response time for responsive user interfaces
- SPI Digital Interface - Easy integration with microcontrollers and processors
- Wide Operating Range - Industrial-grade performance from -40°C to 85°C
- Low Power Operation - Single supply 2.6V to 3.6V for battery-powered applications
- Compact Footprint - Space-saving 24-LFCSP (4x4mm) surface mount package
- RoHS Compliant - Meets environmental and regulatory standards
Applications
Ideal for capacitive touch buttons, sliders, wheels, proximity sensors, liquid level detection, and human interface devices in harsh industrial environments.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | CapTouch™ |
| Packaging | Marketplace | Tape & Reel (TR) |
| Type | Capacitance-to-Digital Converter |
| Number of Channels | 13 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 250k |
| Data Interface | SPI |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.6V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| ROHS |  |
AD7147PACPZ-RL.pdf
×
