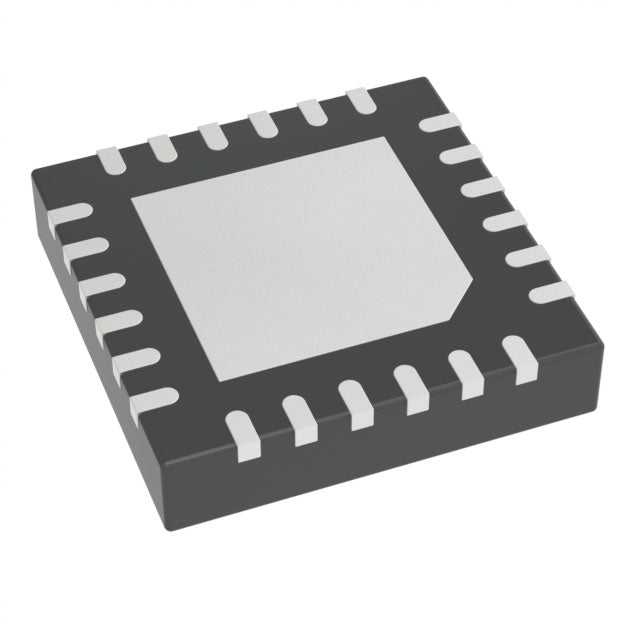

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
AD7147WPACPZ-1RL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.79 AED | Dhs. 7.79 AED |
| 15+ | Dhs. 7.54 AED | Dhs. 113.10 AED |
| 25+ | Dhs. 7.38 AED | Dhs. 184.50 AED |
| 50+ | Dhs. 6.97 AED | Dhs. 348.50 AED |
| 100+ | Dhs. 6.15 AED | Dhs. 615.00 AED |
| N+ | Dhs. 1.23 AED | Price Inquiry |
Couldn't load pickup availability
AD7147WPACPZ-1RL - Automotive-Grade Capacitance-to-Digital Converter
The AD7147WPACPZ-1RL from Analog Devices is a high-performance, automotive-qualified capacitance-to-digital converter designed for mission-critical applications requiring exceptional reliability and precision. This 13-channel converter delivers 16-bit resolution with a 250kSPS sampling rate, making it ideal for advanced touch sensing, proximity detection, and capacitive measurement systems in harsh automotive environments.
Key Features & Benefits
- 13 Independent Channels - Simultaneous multi-point sensing capability for complex interface designs
- 16-Bit Resolution - High-precision measurements for accurate capacitance detection
- 250kSPS Sampling Rate - Fast response time for real-time touch and proximity applications
- Automotive Grade - Qualified for -40°C to 85°C operation in demanding automotive environments
- I2C & Serial Interface - Easy integration with microcontrollers and embedded systems
- Low Power Operation - Single supply 2.6V to 3.6V for energy-efficient designs
- Compact LFCSP-24 Package - Space-saving 4x4mm footprint for dense PCB layouts
- RoHS Compliant - Meets environmental standards for global markets
Applications
Perfect for automotive HMI systems, industrial control panels, medical devices, and telecommunications equipment requiring long-term availability and full traceability. The AD7147WPACPZ-1RL supports capacitive button arrays, sliders, wheels, and proximity sensors with exceptional noise immunity.
Why Choose HQICKEY?
As an authorized distributor, we guarantee 100% authentic Analog Devices components with full traceability documentation. Every AD7147WPACPZ-1RL ships with RoHS/REACH compliance certificates and is backed by our commitment to long lifecycle availability for your critical designs. Bulk pricing and custom packaging options available for high-volume projects.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Type | Capacitance-to-Digital Converter |
| Number of Channels | 13 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 250k |
| Data Interface | I2C, Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.6V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | - |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| ROHS |  |
AD7147WPACPZ-1RL.pdf
