Analog Devices Inc. AD7147WPACPZ-500R7
Regular price
Dhs. 20.68
Regular price
Dhs. 21.77
Sale price
Dhs. 20.68
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 20.68 | Dhs. 20.68 |
| 15+ | Dhs. 20.03 | Dhs. 300.45 |
| 25+ | Dhs. 19.59 | Dhs. 489.75 |
| 50+ | Dhs. 18.50 | Dhs. 925.00 |
| 100+ | Dhs. 16.33 | Dhs. 1,633.00 |
| N+ | Dhs. 3.27 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

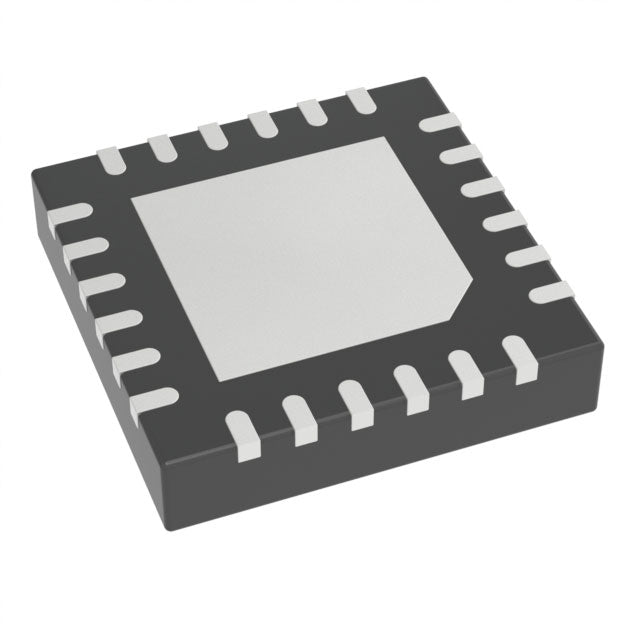

AD7147WPACPZ-500R7 Capacitance-to-Digital Converter
The AD7147WPACPZ-500R7 from Analog Devices is a high-performance, automotive-grade capacitance-to-digital converter designed for precision touch sensing and proximity detection applications. This advanced 13-channel CDC features 16-bit resolution and a fast 250kSPS sampling rate, making it ideal for automotive HMI, industrial control panels, and medical device interfaces.
Key Features & Benefits
- 13 Independent Channels - Enables multi-touch and complex gesture recognition
- 16-Bit Resolution - Delivers exceptional sensitivity and accuracy for capacitive sensing
- 250kSPS Sampling Rate - Ensures responsive, real-time touch detection
- SPI Digital Interface - Simplifies integration with microcontrollers and processors
- Automotive Grade - Qualified for demanding automotive environments (-40°C to 85°C)
- Low Power Operation - Single supply 2.6V to 3.6V for energy-efficient designs
- Compact 24-LFCSP Package - Space-saving 4x4mm footprint for dense PCB layouts
- RoHS Compliant - Meets environmental and regulatory standards
Applications
Perfect for automotive touchscreens, capacitive buttons and sliders, proximity sensors, liquid level detection, and industrial human-machine interfaces requiring reliable, high-resolution capacitive sensing.
All specifications subject to manufacturer's datasheet. Contact us for design-in support, reference designs, and volume pricing.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Capacitance-to-Digital Converter |
| Number of Channels | 13 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 250k |
| Data Interface | SPI |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.6V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | - |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| ROHS |  |
AD7147WPACPZ-500R7.pdf
×
