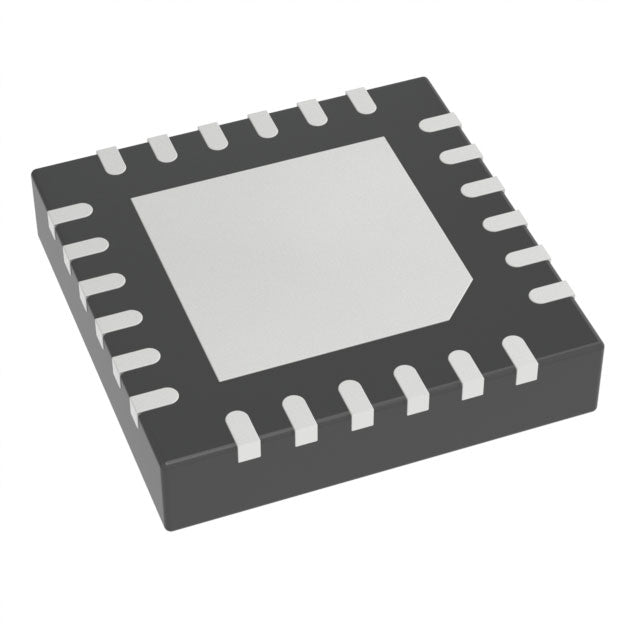

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
AD7147WPACPZ-RL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.79 AED | Dhs. 7.79 AED |
| 15+ | Dhs. 7.54 AED | Dhs. 113.10 AED |
| 25+ | Dhs. 7.38 AED | Dhs. 184.50 AED |
| 50+ | Dhs. 6.97 AED | Dhs. 348.50 AED |
| 100+ | Dhs. 6.15 AED | Dhs. 615.00 AED |
| N+ | Dhs. 1.23 AED | Price Inquiry |
Couldn't load pickup availability
AD7147WPACPZ-RL Capacitance-to-Digital Converter
The AD7147WPACPZ-RL from Analog Devices is a high-precision, automotive-grade capacitance-to-digital converter designed for mission-critical applications requiring reliable touch sensing and proximity detection. This advanced 13-channel sensor IC delivers exceptional performance with 16-bit resolution and 250kSPS sampling rate, making it ideal for aerospace, automotive, industrial, and medical equipment.
Key Features & Benefits
- 13 Independent Channels - Enables complex multi-touch and proximity sensing configurations
- 16-Bit Resolution - Provides precise capacitance measurements for accurate touch detection
- 250kSPS Sampling Rate - Fast response time for real-time applications
- SPI Digital Interface - Easy integration with microcontrollers and embedded systems
- Automotive Grade Qualified - Operates reliably across -40°C to 85°C temperature range
- Low Power Operation - Single supply 2.6V to 3.6V for energy-efficient designs
- RoHS Compliant - Meets environmental and regulatory standards
- Compact 24-LFCSP Package - Space-saving 4x4mm footprint for dense PCB layouts
Applications
Perfect for automotive HMI systems, industrial control panels, medical devices, consumer electronics, and any application requiring robust capacitive sensing in harsh environments.
Authorized Distributor - We provide genuine Analog Devices components with full traceability, RoHS/REACH compliance documentation, and long lifecycle availability for critical designs.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Type | Capacitance-to-Digital Converter |
| Number of Channels | 13 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 250k |
| Data Interface | SPI |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.6V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | - |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| ROHS |  |
AD7147WPACPZ-RL.pdf
