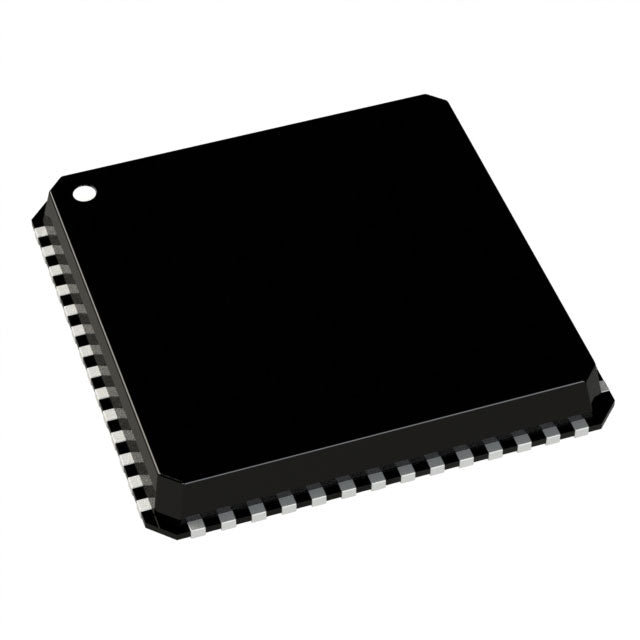

Analog Devices Inc. AD7294BCPZRL
Regular price
$13.86
Regular price
$14.59
Sale price
$13.86
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.86 | $13.86 |
| 15+ | $13.42 | $201.30 |
| 25+ | $13.13 | $328.25 |
| 50+ | $12.40 | $620.00 |
| 100+ | $10.94 | $1,094.00 |
| N+ | $2.19 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tape & Reel (TR) |
| Type | ADC, DAC |
| Number of Channels | 4 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 22.22k |
| Data Interface | I2C, Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 56-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 56-LFCSP-VQ (8x8) |
| ROHS |  |
AD7294BCPZRL - High-Performance 12-Bit Quad-Channel ADC/DAC Converter
The AD7294BCPZRL from Analog Devices Inc. is a precision 12-bit, 4-channel analog-to-digital and digital-to-analog converter designed for demanding industrial, automotive, and instrumentation applications requiring reliable mixed-signal processing.
Key Features & Benefits
- Dual Functionality: Integrated ADC and DAC in a single compact package reduces board space and system complexity
- High Resolution: 12-bit precision ensures accurate signal conversion for critical measurement and control applications
- Flexible Interface: I2C and Serial data interfaces simplify integration with microcontrollers and embedded systems
- Wide Operating Range: -40°C to 105°C temperature range supports harsh industrial and automotive environments
- Extended Lifecycle: Backed by Analog Devices' long-term availability commitment for design-in confidence
- RoHS Compliant: Meets environmental standards for global market deployment
Ideal Applications
Industrial automation, process control, medical instrumentation, automotive sensor interfaces, test and measurement equipment, and multi-channel data acquisition systems.
Authorized Distributor: Full traceability, original manufacturer documentation, and long-term supply commitment. Contact us for volume pricing, lead times, and technical support.
AD7294BCPZRL.pdf
×
