Analog Devices Inc. AD7381BCPZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 5M |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

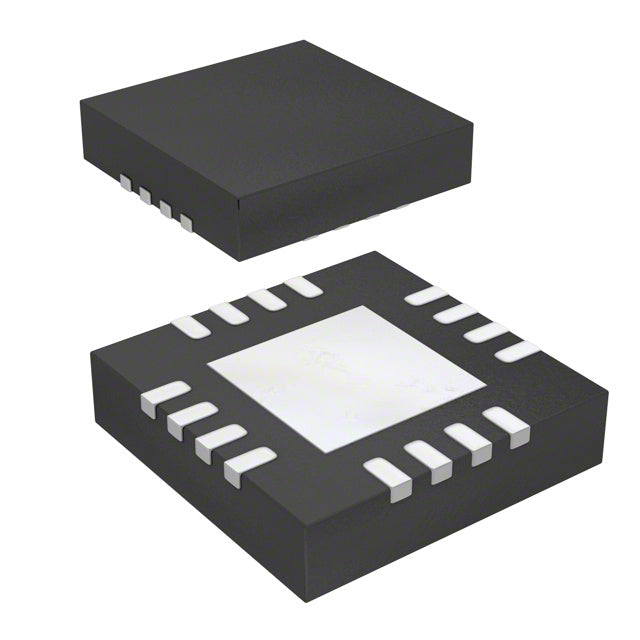

| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) |
| ROHS |  |
The AD7381BCPZ is a high-speed, 14-bit successive approximation (SAR) analog-to-digital converter from Analog Devices. It offers a fast sampling rate of 5 MSPS and features two simultaneous sampling input channels, making it ideal for applications requiring precise, synchronized data acquisition. The device supports both external and internal voltage references and operates over a wide temperature range of -40°C to 125°C. Housed in a compact 16-WFQFN package, it is well-suited for industrial automation, motor control, and test and measurement systems.
- High-Speed Precision: 14-bit resolution at 5 MSPS ensures accurate and fast conversion for demanding real-time control and measurement applications.
- Simultaneous Sampling: Dual channels capture two signals at the exact same instant, critical for power monitoring and motor control phase analysis.
- Flexible Reference: Support for both external and internal references provides design flexibility to optimize accuracy and cost.
- Wide Temperature Range: Rated for -40°C to 125°C, ensuring reliable operation in extreme industrial environments.
- Compact Package: The 16-WFQFN CSP package saves board space, enabling high-density system designs.
Motor Control and Power Inverters
The AD7381BCPZ's 5 MSPS sampling rate and dual simultaneous sampling channels enable precise current and voltage monitoring in motor control loops, improving efficiency and response time.
Data Acquisition Systems (DAQ)
With 14-bit resolution and a serial interface, this ADC is ideal for high-speed DAQ systems requiring accurate digitization of multiple analog signals with minimal latency.
Industrial Automation and Process Control
The wide operating temperature range (-40°C to 125°C) and external/internal reference options make it suitable for harsh industrial environments, ensuring reliable performance in process control loops.
Medical Instrumentation
High resolution and fast sampling support medical imaging and patient monitoring equipment where accurate and rapid signal conversion is critical for diagnostic quality.
Test and Measurement Equipment
The S/H architecture and 5 MSPS throughput allow for accurate capture of transient signals in oscilloscopes and spectrum analyzers, enhancing measurement fidelity.
Energy and Power Monitoring
Simultaneous sampling of voltage and current channels enables accurate power calculation in smart grid and renewable energy systems, improving energy management.
- Q: What type of ADC is the AD7381BCPZ?
- A: The AD7381BCPZ is a 14-bit successive approximation (SAR) analog-to-digital converter with a sample-and-hold (S/H) front end.
- Q: What is the resolution of the AD7381BCPZ?
- A: It has a 14-bit resolution, providing high precision for industrial and instrumentation applications.
- Q: What is the sampling rate of the AD7381BCPZ?
- A: The AD7381BCPZ supports a maximum sampling rate of 5 MSPS (5 million samples per second).
- Q: How many input channels does the AD7381BCPZ have?
- A: It features 2 input channels for simultaneous sampling of two analog signals.
- Q: What interface does the AD7381BCPZ use?
- A: It uses a serial interface for communication with microcontrollers, DSPs, or FPGAs.
- Q: What is the package type of the AD7381BCPZ?
- A: It is available in a 16-WFQFN Exposed Pad, CSP package, suitable for compact PCB designs.
