Analog Devices Inc. AD7400AYRWZ-RL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 35.77 | Dhs. 35.77 |
| 15+ | Dhs. 34.64 | Dhs. 519.60 |
| 25+ | Dhs. 33.89 | Dhs. 847.25 |
| 50+ | Dhs. 32.00 | Dhs. 1,600.00 |
| 100+ | Dhs. 28.24 | Dhs. 2,824.00 |
| N+ | Dhs. 5.65 | Price Inquiry |
Request Quote / Inquiry
AD7400AYRWZ-RL - High-Performance Isolated Sigma-Delta Modulator
The AD7400AYRWZ-RL from Analog Devices is a second-order, single-channel sigma-delta (Σ-Δ) modulator that converts analog signals into a high-speed, single-bit data stream with galvanic isolation based on the Analog Devices iCoupler® technology.
Key Features & Benefits
- 16-bit resolution with 10 MSPS sampling rate for precision measurement
- Galvanic isolation using iCoupler® technology for enhanced safety and noise immunity
- Wide supply voltage range: 3V to 5.5V (analog side), 4.5V to 5.5V (digital side)
- Extended temperature range: -40°C to 125°C for industrial and automotive applications
- Serial data interface for easy integration with DSPs, FPGAs, and microcontrollers

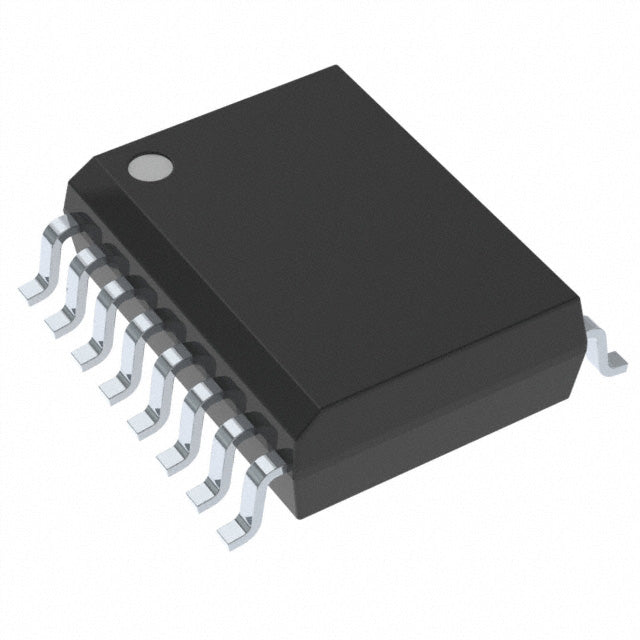

- Surface mount 16-SOIC package for compact PCB design
Typical Applications
- Isolated current sensing in motor drives and inverters
- Voltage monitoring in power conversion systems
- Industrial process control and automation
- Renewable energy systems (solar, wind)
- Medical equipment requiring galvanic isolation
- Automotive battery management systems
Why Choose AD7400AYRWZ-RL?
This isolated modulator delivers exceptional performance for applications requiring accurate analog-to-digital conversion with galvanic isolation. The iCoupler® technology provides superior noise immunity compared to optocoupler-based solutions, while maintaining high reliability and long operational life. Perfect for engineers designing high-precision isolated measurement systems in harsh industrial environments.
Compliance & Quality
✓ RoHS Compliant - Meets environmental standards
✓ Full traceability - Authorized distributor stock
✓ Available in tape & reel for automated assembly
Need design support? Access the complete datasheet and reference designs through our technical resources.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | iCoupler® |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Type | Modulator |
| Number of Channels | 1 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 10M |
| Data Interface | Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 3V ~ 5.5V, 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| ROHS |  |
AD7400AYRWZ-RL.pdf
