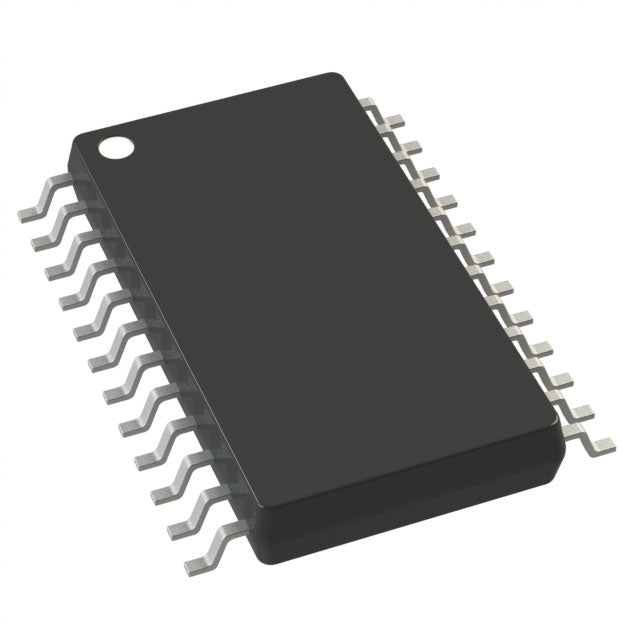

Analog Devices Inc. AD7472BRUZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.41 | $27.41 |
| 15+ | $26.54 | $398.10 |
| 25+ | $25.97 | $649.25 |
| 50+ | $24.52 | $1,226.00 |
| 100+ | $21.64 | $2,164.00 |
| N+ | $4.33 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1.5M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
| ROHS |  |
The AD7472BRUZ is a high-speed, 12-bit Analog-to-Digital Converter from Analog Devices, capable of sampling at up to 1.5 MSPS. It features a single input channel and a parallel interface for rapid data transfer. The device uses a sample-and-hold architecture and requires an external reference for operation. Packaged in a compact 24-TSSOP, it operates over -40°C to +85°C. This ADC is perfect for high-speed portable instruments, communication systems, and industrial video processing applications.
- Very High Speed: 1.5 MSPS sampling rate enables capture of fast signals.
- Compact TSSOP Package: Saves space in portable and dense designs.
- Parallel Output: Ensures fast data transfer to microcontrollers and DSPs.
- Wide Temperature Range: Reliable operation from -40°C to +85°C.
High-Speed Portable Instruments
The AD7472BRUZ's 1.5 MSPS sampling rate and small TSSOP package make it ideal for portable high-speed instruments like handheld oscilloscopes and logic analyzers.
Communication Systems
In wireless communication systems, this ADC can digitize baseband signals with high speed and accuracy. Its parallel interface is compatible with DSPs and FPGAs used in modems.
Industrial Video Processing
The high sampling rate is suitable for digitizing analog video signals in industrial imaging systems. The 12-bit resolution provides good image quality for machine vision applications.
Automotive Electronics
With a wide temperature range, the AD7472BRUZ can be used in automotive applications such as engine control and battery monitoring, where fast and reliable conversion is required.
Test and Measurement
This ADC is well-suited for benchtop multimeters and data loggers that require high-speed sampling to capture transient events accurately.
- Q: What is the AD7472BRUZ?
- A: It is a 12-bit, 1.5 MSPS Analog-to-Digital Converter (ADC) from Analog Devices.
- Q: What is the sampling rate?
- A: The AD7472BRUZ offers a high sampling rate of 1.5M SPS (1.5 MSPS).
- Q: How many input channels does it have?
- A: It has a single input channel (1 channel).
- Q: What interface does it use?
- A: It uses a parallel interface for high-speed data transfer.
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample-and-Hold) architecture.
- Q: What is the package type?
- A: The device is available in a 24-TSSOP (0.173", 4.40mm Width) package.
