Analog Devices Inc. AD7506KN
Regular price
$102.24
Regular price
$25.56
Sale price
$102.24
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $102.24 | $102.24 |
| 15+ | $23.52 | $352.80 |
| 25+ | $23.00 | $575.00 |
| 50+ | $21.73 | $1,086.50 |
| 100+ | $19.17 | $1,917.00 |
| N+ | $3.83 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 18Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 40pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |

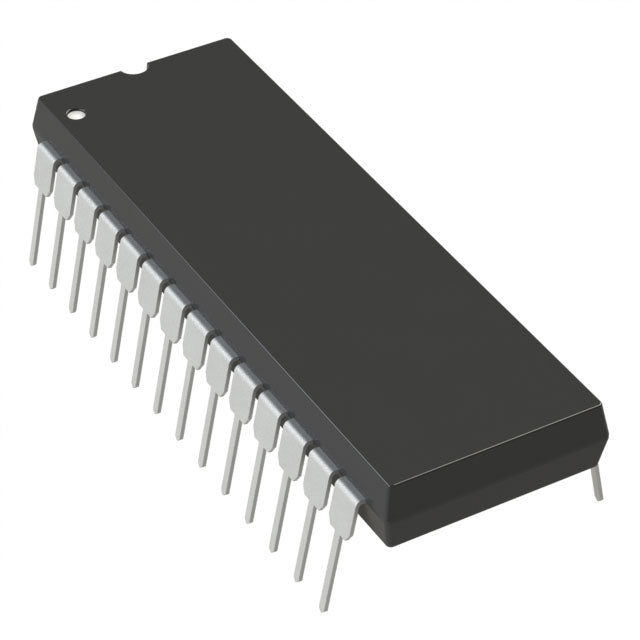

| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-DIP (0.600", 15.24mm) |
AD7506KN.pdf
×
