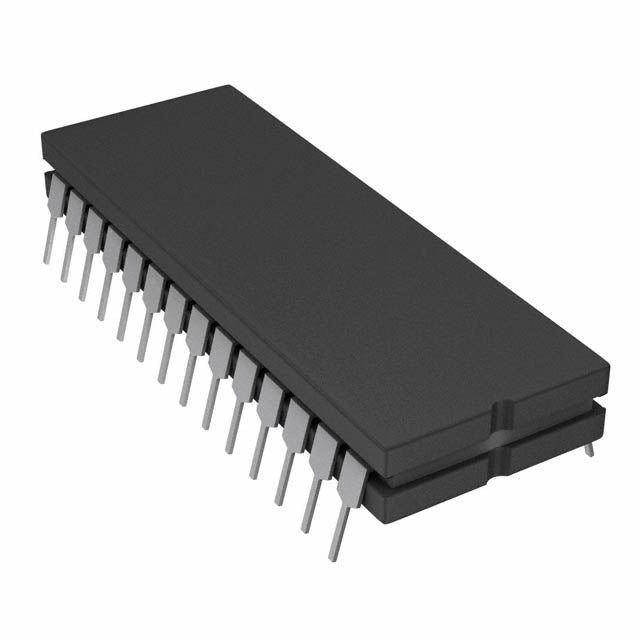

Analog Devices Inc. AD7506SQ
Regular price
$178.40
Regular price
$187.79
Sale price
$178.40
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $178.40 | $178.40 |
| 15+ | $172.77 | $2,591.55 |
| 25+ | $169.01 | $4,225.25 |
| 50+ | $159.62 | $7,981.00 |
| 100+ | $140.84 | $14,084.00 |
| N+ | $28.17 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 18Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 40pF |
| Current - Leakage (IS(off)) (Max) | - |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP (0.600", 15.24mm) |
| ROHS |  |
AD7506SQ.pdf
×
