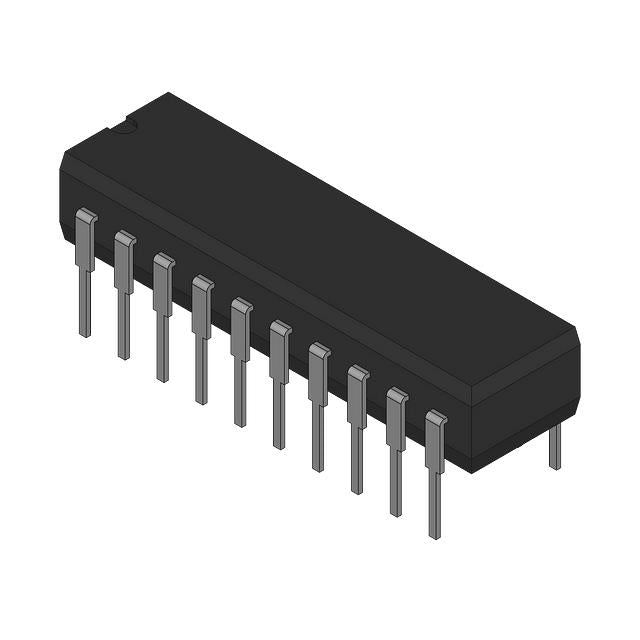

Analog Devices Inc. AD7534SQ
Regular price
Dhs. 355.54
Regular price
Dhs. 374.24
Sale price
Dhs. 355.54
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355.54 | Dhs. 355.54 |
| 15+ | Dhs. 344.30 | Dhs. 5,164.50 |
| 25+ | Dhs. 336.82 | Dhs. 8,420.50 |
| 50+ | Dhs. 318.10 | Dhs. 15,905.00 |
| 100+ | Dhs. 280.68 | Dhs. 28,068.00 |
| N+ | Dhs. 56.14 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD7534 |
| Packaging | Bulk | |
| Number of Bits | 14 |
| Number of D/A Converters | 1 |
| Settling Time | 800ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 11.4V ~ 15.75V |
| Voltage - Supply, Digital | 11.4V ~ 15.75V |
| INL/DNL (LSB) | ±1, ±1 |
| Architecture | Multiplying DAC, R-2R |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CERDIP |
AD7534SQ.pdf
×
