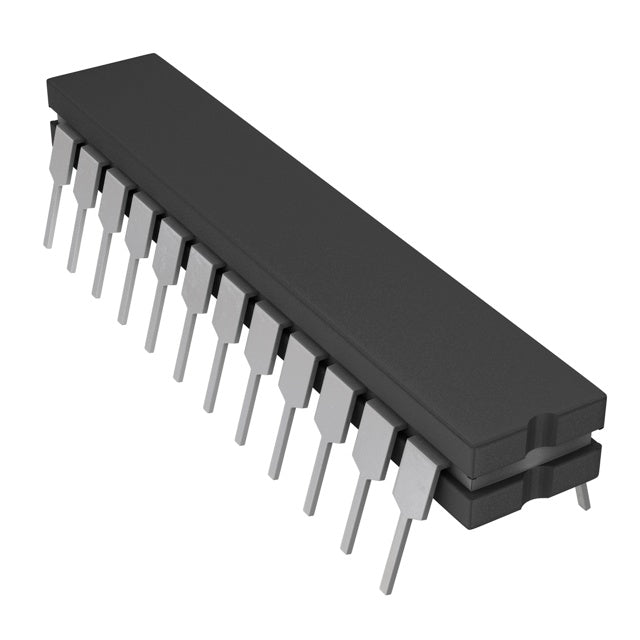

Analog Devices Inc. AD7572AAQ03
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $270.55 | $270.55 |
| 15+ | $62.23 | $933.45 |
| 25+ | $60.88 | $1,522.00 |
| 50+ | $57.49 | $2,874.50 |
| 100+ | $50.73 | $5,073.00 |
| N+ | $10.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V, -11.4V ~ 16.5V |
| Voltage - Supply, Digital | +5V, -11.4V ~ 16.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP |
| ROHS |  |
The AD7572AAQ03 is a 12-bit, single-channel analog-to-digital converter from Analog Devices, featuring a parallel interface for straightforward digital integration. It includes an internal reference, simplifying circuit design and reducing external component count. The device operates over an industrial temperature range of -40°C to 85°C and is packaged in a rugged 24-pin ceramic CDIP. This ADC is ideal for applications requiring reliable, medium-resolution conversion, such as industrial control, test instrumentation, and aerospace systems.
- Rugged Ceramic Package: The CDIP package offers superior environmental protection and long-term reliability for harsh operating conditions.
- Simple Parallel Interface: Direct connection to microprocessors without complex serial protocols simplifies system design.
- Internal Reference: Eliminates the need for an external voltage reference, reducing BOM cost and board space.
- Proven 12-Bit Performance: Delivers dependable accuracy for a wide range of industrial and instrumentation applications.
Legacy Industrial Control Systems
The parallel interface of the AD7572AAQ03 allows easy drop-in replacement in existing 12-bit industrial control boards, extending the life of legacy equipment.
Military and Aerospace Electronics
The ceramic CDIP package provides hermetic sealing and high reliability, making the AD7572AAQ03 suitable for defense and aerospace applications where ruggedness is critical.
Precision Measurement Instruments
With its internal reference and 12-bit resolution, this ADC is well-suited for digital panel meters and precision voltmeters used in calibration labs.
Automotive Test Equipment
The wide temperature range and parallel output enable use in engine test benches and vehicle diagnostics systems that require fast, reliable data conversion.
Audio Signal Processing
In professional audio equipment, the AD7572AAQ03 can digitize analog audio signals with sufficient fidelity for mixing consoles and effects processors.
- Q: What is the AD7572AAQ03?
- A: It is a 12-bit, single-channel analog-to-digital converter (ADC) from Analog Devices with a standard ADC architecture.
- Q: What is the resolution of the AD7572AAQ03?
- A: It provides 12-bit resolution, offering a good balance between precision and cost for many applications.
- Q: How many channels does it have?
- A: It has 1 input channel, designed for single-ended analog signal conversion.
- Q: What interface does it support?
- A: It uses a Parallel interface for direct connection to microprocessors and digital buses.
- Q: What is the operating temperature range?
- A: It operates over an industrial temperature range of -40°C to 85°C.
- Q: What package is it available in?
- A: It comes in a 24-pin CDIP (0.300", 7.62mm) ceramic dual-inline package.
