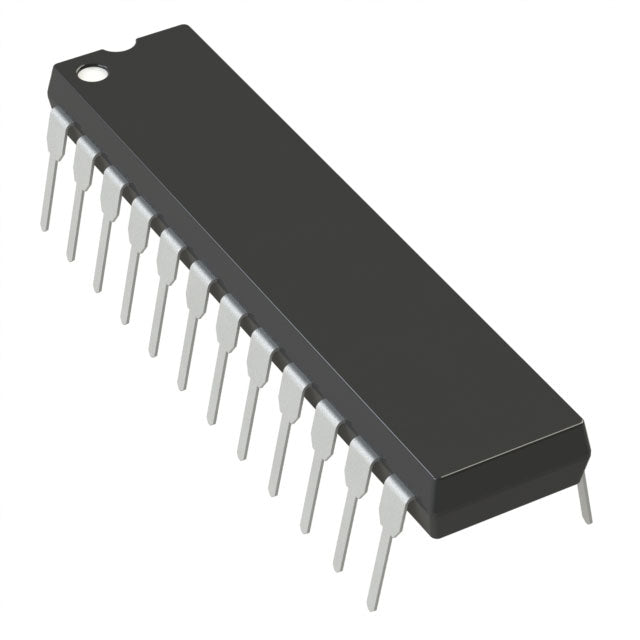

Analog Devices Inc. AD7572AJNZ10
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $44.95 | $44.95 |
| 15+ | $43.53 | $652.95 |
| 25+ | $42.59 | $1,064.75 |
| 50+ | $40.22 | $2,011.00 |
| 100+ | $35.49 | $3,549.00 |
| N+ | $7.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V, -11.4V ~ 16.5V |
| Voltage - Supply, Digital | +5V, -11.4V ~ 16.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP |
| ROHS |  |
The AD7572AJNZ10 is a 12-bit analog-to-digital converter from Analog Devices, featuring a single input channel and parallel interface. It includes an internal reference, simplifying design. Operating from 0°C to 70°C, it is housed in a 24-DIP package. Ideal for precision instrumentation, industrial process control, and data acquisition systems.
- 12-bit resolution offers good accuracy for industrial and instrumentation applications.
- Internal reference reduces external component count and improves stability.
- Parallel interface enables fast data transfer to microprocessors.
- DIP package supports through-hole assembly for robust mechanical mounting.
Precision Instrumentation
The AD7572AJNZ10's 12-bit resolution and internal reference make it suitable for precision digital multimeters and laboratory instruments.
Industrial Process Control
In industrial settings, this ADC converts analog sensor outputs (e.g., 4-20mA loops) to digital with high accuracy for PLCs.
Data Acquisition Boards
Its parallel interface and DIP package allow easy integration into ISA/PCI data acquisition cards for legacy systems.
Medical Devices
For patient monitoring equipment, the AD7572AJNZ10 provides reliable 12-bit conversion of vital sign signals.
Audio Digitization
With 12-bit resolution, it can be used in early digital audio recording systems for moderate-fidelity signal capture.
- Q: What is the resolution of the AD7572AJNZ10?
- A: The AD7572AJNZ10 has a resolution of 12 bits.
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: Does it have an internal reference?
- A: Yes, it includes an internal reference.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C.
- Q: What package is it available in?
- A: It comes in a 24-DIP (0.300", 7.62mm) package.
