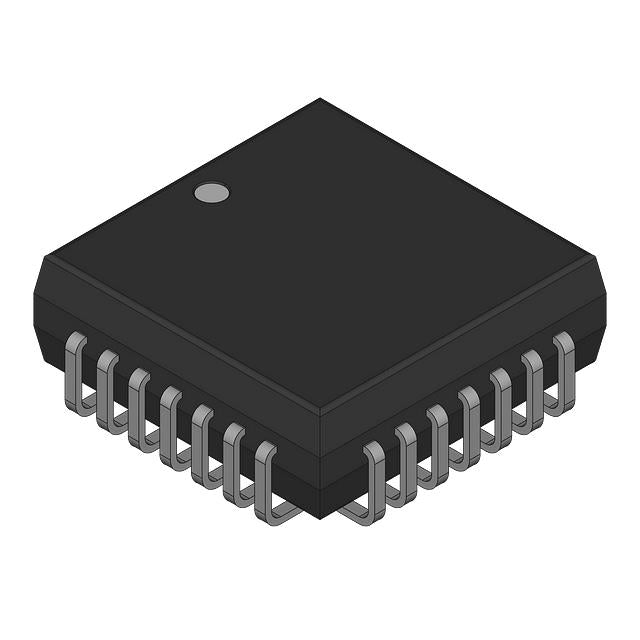

Analog Devices Inc. AD7572JP12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $157.64 | $157.64 |
| 15+ | $36.26 | $543.90 |
| 25+ | $35.47 | $886.75 |
| 50+ | $33.50 | $1,675.00 |
| 100+ | $29.56 | $2,956.00 |
| N+ | $5.91 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V, -14.25V ~ -15.75V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V, -14.25V ~ -15.75V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
The AD7572JP12 is a 12-bit, single-channel Analog-to-Digital Converter (ADC) from Analog Devices, featuring a MUX-ADC architecture. It provides a parallel interface and includes an internal voltage reference, simplifying external circuitry. The device operates over the commercial temperature range of 0°C to 70°C and is housed in a 28-LCC (J-Lead) package. While the sampling rate is not specified in the available data, this ADC is suitable for applications requiring straightforward 12-bit conversion with minimal external components, such as embedded data logging and simple sensor interfaces.
- Integrated Reference: The internal voltage reference reduces external component count and simplifies design.
- Simple Parallel Interface: Easy connection to microprocessors and digital systems.
- 12-Bit Resolution: Provides adequate precision for many control and monitoring applications.
- Compact Package: The 28-LCC package is suitable for space-constrained designs.
- Proven Technology: Based on a mature MUX-ADC architecture, ensuring reliable operation.
Legacy Industrial Control Systems
The AD7572JP12 is suitable for upgrading or maintaining legacy industrial control systems that require a 12-bit parallel ADC with an internal reference.
Embedded Data Logging
In embedded systems where simplicity is key, this ADC provides straightforward parallel interfacing for data logging applications.
Battery-Powered Instruments
With its internal reference and simple interface, the AD7572JP12 is appropriate for battery-powered portable instruments requiring low component count.
Educational Kits
Due to its simple architecture and parallel interface, it is well-suited for educational purposes in teaching ADC fundamentals.
Replacement Parts
For existing designs using the AD7572, this part serves as a direct replacement to maintain product longevity.
Simple Sensor Interfaces
For basic sensor signal conditioning, this ADC can digitize slow-changing signals with adequate 12-bit resolution.
- Q: What is the AD7572JP12?
- A: It is a 12-bit, single-channel Analog-to-Digital Converter (ADC) from Analog Devices with a MUX-ADC architecture.
- Q: What is the sampling rate of the AD7572JP12?
- A: The sampling rate is not specified in the provided technical data.
- Q: How many input channels does it have?
- A: It has 1 input channel for single-ended signal conversion.
- Q: What digital interface does it use?
- A: It uses a parallel interface for data output.
- Q: Does it have an internal reference?
- A: Yes, it has an internal voltage reference.
- Q: What is the operating temperature range?
- A: It operates over the commercial temperature range of 0°C to 70°C.
