Analog Devices Inc. AD7572KP05
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $345.56 | $345.56 |
| 15+ | $79.48 | $1,192.20 |
| 25+ | $77.75 | $1,943.75 |
| 50+ | $73.43 | $3,671.50 |
| 100+ | $64.79 | $6,479.00 |
| N+ | $12.96 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V, -14.25V ~ -15.75V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V, -14.25V ~ -15.75V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

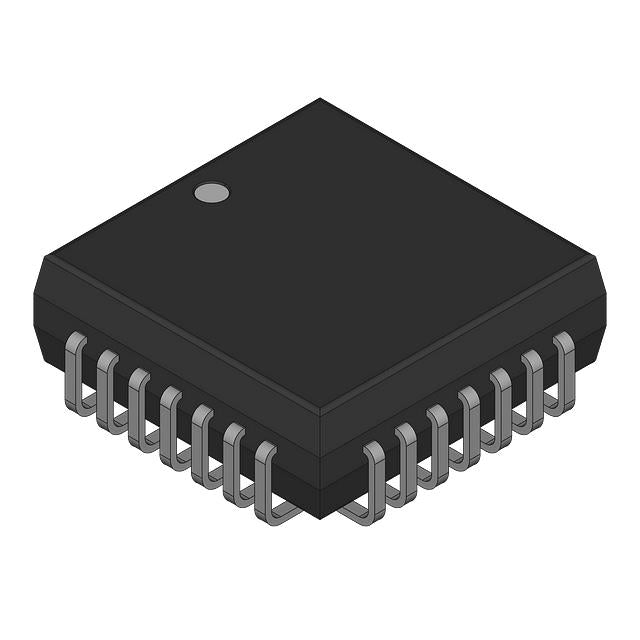

| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
The AD7572KP05 is a 12-bit, single-channel analog-to-digital converter from Analog Devices, featuring a multiplexed architecture and an internal reference. Housed in a compact 28-pin LCC package, it operates over the commercial temperature range of 0°C to 70°C. The parallel interface ensures seamless integration with microprocessors and DSPs. This ADC is designed for precision data acquisition, industrial control, and medical instrumentation where 12-bit accuracy and reliable performance are essential.
- High 12-Bit Resolution: Provides fine granularity (4096 steps) for accurate measurement of analog signals, reducing quantization error.
- Internal Reference: Eliminates the need for external reference ICs, simplifying PCB layout and reducing BOM cost.
- MUX-ADC Architecture: Allows for easy expansion to multi-channel systems by using an external analog multiplexer.
- Compact LCC Package: The 28-lead ceramic package saves board space while offering good thermal performance.
Precision Data Acquisition Systems
The 12-bit resolution and internal reference of the AD7572KP05 make it suitable for high-accuracy data acquisition cards used in laboratory instrumentation and scientific analysis.
Industrial Weighing & Force Measurement
With its MUX-ADC architecture, this converter can be paired with external multiplexers to handle multiple load cells, providing precise digital weight readings in industrial scales.
Medical Instrumentation
The 12-bit accuracy and parallel output are well-suited for patient monitoring devices that require digitization of biopotential signals (e.g., ECG, EEG) with good noise immunity.
Robotics & Motion Control
In servo control loops, the AD7572KP05 digitizes position feedback from potentiometers or encoders with high resolution, enabling precise motor positioning.
Energy Management Systems
For power monitoring, this ADC can digitize voltage and current transducer outputs with 12-bit precision, supporting accurate power quality analysis.
- Q: What is the resolution of the AD7572KP05?
- A: The AD7572KP05 is a 12-bit analog-to-digital converter, providing 4096 discrete levels for high-precision measurements.
- Q: How many channels does the AD7572KP05 have?
- A: It features a single input channel (1 channel) with a multiplexed architecture (MUX-ADC).
- Q: What interface does this ADC use?
- A: It uses a parallel interface for data output, allowing easy connection to 12-bit or 16-bit data buses.
- Q: What is the operating temperature range?
- A: The AD7572KP05 operates in the commercial temperature range of 0°C to 70°C.
- Q: What package is the AD7572KP05 available in?
- A: It is offered in a 28-pin LCC (J-Lead) ceramic leadless chip carrier package.
- Q: Does the AD7572KP05 have an internal reference?
- A: Yes, it includes an internal reference, simplifying the external circuit design.
