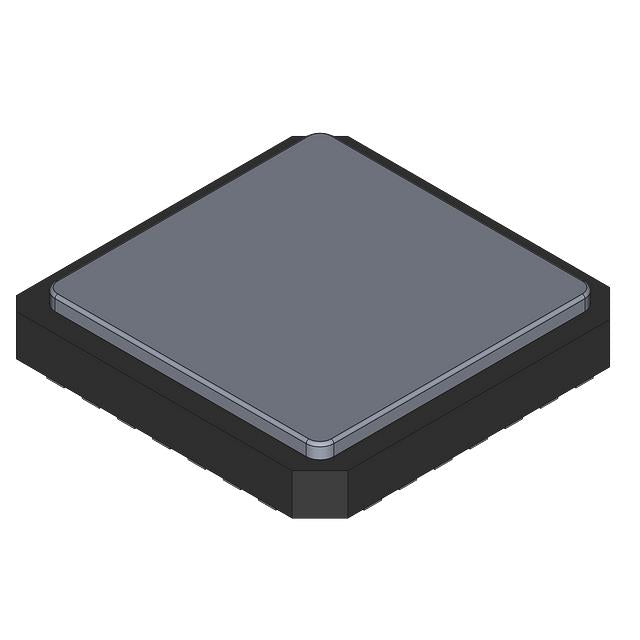

Analog Devices Inc. AD7572SE05
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $404.17 | $404.17 |
| 15+ | $391.40 | $5,871.00 |
| 25+ | $382.90 | $9,572.50 |
| 50+ | $361.62 | $18,081.00 |
| 100+ | $319.08 | $31,908.00 |
| N+ | $63.82 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V, -14.25V ~ -15.75V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V, -14.25V ~ -15.75V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CLCC |
| Supplier Device Package | 28-CLCC (11.43x11.43) |
The AD7572SE05 is a 12-bit analog-to-digital converter from Analog Devices, featuring a MUX-ADC architecture designed for multiplexed signal acquisition. It offers a single input channel and a parallel interface for efficient data transfer. The device includes an internal reference, simplifying system design. Housed in a 28-CLCC package, it operates over the military temperature range of -55°C to 125°C, making it suitable for high-reliability applications.
- MUX-ADC Architecture: Optimized for multiplexed signal acquisition, reducing system complexity.
- Internal Reference: Eliminates the need for external reference components.
- Military Temperature Range: Operates from -55°C to 125°C for harsh environments.
- Compact CLCC Package: Suitable for space-constrained and high-reliability applications.
Multiplexed Data Acquisition Systems
The MUX-ADC architecture of the AD7572SE05 is designed for systems that require multiplexing multiple analog signals into a single ADC, making it ideal for data acquisition front-ends.
Industrial Process Control
In process control systems, this ADC can digitize signals from various sensors, such as temperature and pressure, enabling precise monitoring and control.
Medical Monitoring Devices
The 12-bit resolution and single-channel design make it suitable for medical devices like patient monitors, where accurate digitization of vital signs is essential.
Test and Measurement Equipment
For benchtop multimeters and data loggers, the AD7572SE05 provides reliable and accurate conversion of analog inputs.
Avionics and Defense Systems
With its military temperature range and robust CLCC package, this ADC is suitable for avionics and defense applications requiring high reliability.
Energy Management Systems
In smart grid and energy management, this ADC can be used to monitor power consumption and quality, ensuring efficient energy usage.
- Q: What is the resolution of the AD7572SE05?
- A: It is a 12-bit analog-to-digital converter.
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the architecture?
- A: It uses a MUX-ADC architecture.
- Q: What reference is used?
- A: It uses an internal reference.
- Q: What is the package type?
- A: It comes in a 28-CLCC package.
