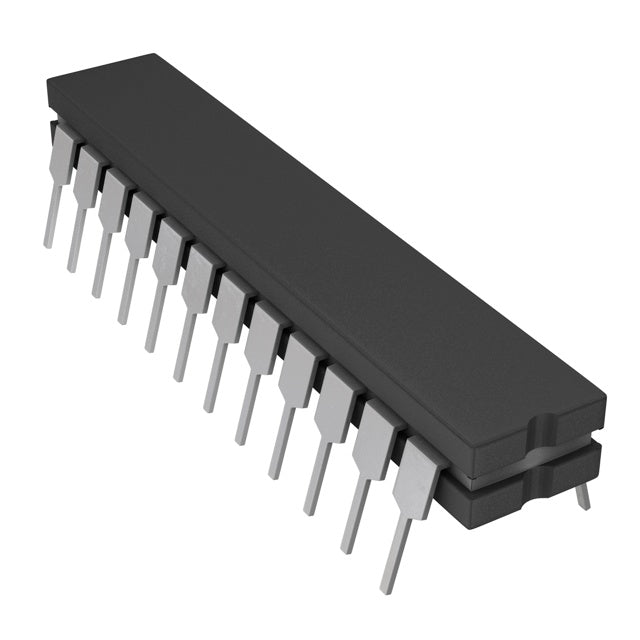

Analog Devices Inc. AD7574BQ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $44.70 | $44.70 |
| 15+ | $43.29 | $649.35 |
| 25+ | $42.35 | $1,058.75 |
| 50+ | $39.99 | $1,999.50 |
| 100+ | $35.29 | $3,529.00 |
| N+ | $7.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP |
| ROHS |  |
The AD7574BQ from Analog Devices is an 8-bit analog-to-digital converter featuring a single input channel and a parallel interface. This ADC operates with an external reference and is housed in a 24-CDIP package, designed for reliable performance across -25°C to 85°C. Its straightforward architecture makes it a practical choice for industrial control, data acquisition, and embedded applications requiring dependable 8-bit conversion.
- Simple Parallel Interface: The parallel output enables direct connection to microprocessors without complex serial protocols, simplifying system design.
- External Reference Flexibility: Using an external reference allows designers to tailor the input voltage range to specific application needs, improving measurement accuracy.
- Wide Temperature Range: Rated for -25°C to 85°C, the AD7574BQ is suitable for industrial environments where temperature variations are common.
- Compact CDIP Package: The 24-pin ceramic DIP package offers robust mechanical protection and easy prototyping on through-hole boards.
Industrial Process Control
The AD7574BQ's 8-bit resolution and parallel interface make it suitable for digitizing analog signals in industrial control loops, providing fast data transfer to microcontrollers for real-time adjustments.
Data Acquisition Systems
With its single channel and external reference capability, the AD7574BQ can be integrated into data acquisition front-ends where precise external voltage references are already available, ensuring accurate conversions.
Embedded Systems
The parallel output simplifies connection to legacy microprocessors and DSPs, making the AD7574BQ an ideal choice for embedded systems requiring straightforward digital integration.
Battery Monitoring
In portable battery monitoring applications, the AD7574BQ's low pin count and simple interface help conserve board space while providing adequate resolution for voltage and current sensing.
Educational Kits
Due to its simple parallel interface and 8-bit architecture, the AD7574BQ is well-suited for educational electronics kits demonstrating analog-to-digital conversion principles.
- Q: What type of ADC is the AD7574BQ?
- A: The AD7574BQ is an 8-bit analog-to-digital converter with a successive approximation architecture, featuring a parallel interface.
- Q: What is the resolution of the AD7574BQ?
- A: The AD7574BQ provides 8-bit resolution, offering 256 discrete output levels.
- Q: How many input channels does the AD7574BQ have?
- A: It has a single input channel (1 channel).
- Q: What interface does the AD7574BQ use?
- A: It uses a parallel interface for data output.
- Q: What is the operating temperature range?
- A: The AD7574BQ operates over a temperature range of -25°C to 85°C.
- Q: What package is the AD7574BQ available in?
- A: It is available in a 24-CDIP (0.300", 7.62mm) ceramic dual-inline package.
