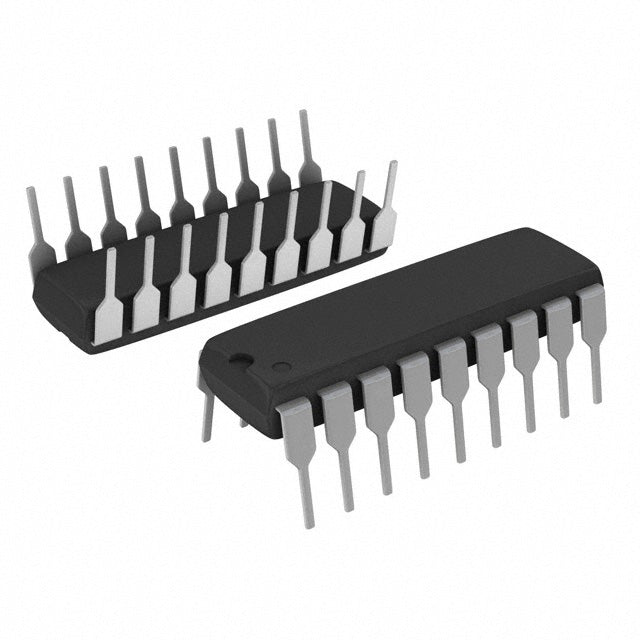

Analog Devices Inc. AD7574JNZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $35.48 | $35.48 |
| 15+ | $34.36 | $515.40 |
| 25+ | $33.62 | $840.50 |
| 50+ | $31.75 | $1,587.50 |
| 100+ | $28.01 | $2,801.00 |
| N+ | $5.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-PDIP |
| ROHS |  |
The AD7574JNZ from Analog Devices is an 8-bit, single-channel analog-to-digital converter featuring a parallel interface. Designed for straightforward integration, it operates with an external reference and is available in a standard 18-pin DIP package. This ADC is well-suited for a variety of applications including data acquisition, industrial control, and embedded systems where reliable, simple analog-to-digital conversion is required.
- Simple Parallel Interface: Direct connection to microcontrollers and DSPs without complex serial protocols, simplifying system design.
- Through-Hole Package: The 18-DIP package is easy to handle and solder, ideal for prototyping and low-volume production.
- External Reference Flexibility: Allows designers to set the full-scale range to match the specific sensor or signal conditioning circuitry.
- Proven 8-Bit Architecture: Provides a cost-effective and reliable solution for applications that do not require higher resolution.
8-Bit Data Acquisition Systems
The AD7574JNZ's parallel interface and 8-bit resolution make it ideal for legacy or high-speed data acquisition systems where simple, direct connection to microprocessors or DSPs is required.
Industrial Control Loops
With its external reference capability and 0°C to 70°C operating range, this ADC is suitable for industrial control applications requiring precise, stable conversions in temperature-controlled environments.
Embedded System Peripherals
The 18-pin DIP package and parallel output simplify PCB layout, making it a practical choice for embedded systems needing a straightforward, low-pin-count analog input solution.
Battery Monitoring Systems
Its single-channel configuration and external reference allow for accurate voltage monitoring in battery management systems, ensuring reliable state-of-charge readings.
Educational and Prototyping Platforms
The through-hole DIP package is breadboard-friendly, making the AD7574JNZ an excellent choice for educational kits and rapid prototyping of 8-bit ADC circuits.
- Q: What is the resolution of the AD7574JNZ?
- A: The AD7574JNZ is an 8-bit analog-to-digital converter.
- Q: How many channels does this ADC have?
- A: It features a single (1) input channel.
- Q: What interface does the AD7574JNZ use?
- A: It uses a parallel interface for data output.
- Q: What is the architecture of this ADC?
- A: It uses a successive approximation (ADC) architecture.
- Q: What reference type is required?
- A: It requires an external voltage reference.
- Q: What is the package type?
- A: It comes in an 18-DIP (0.300", 7.62mm) package.
