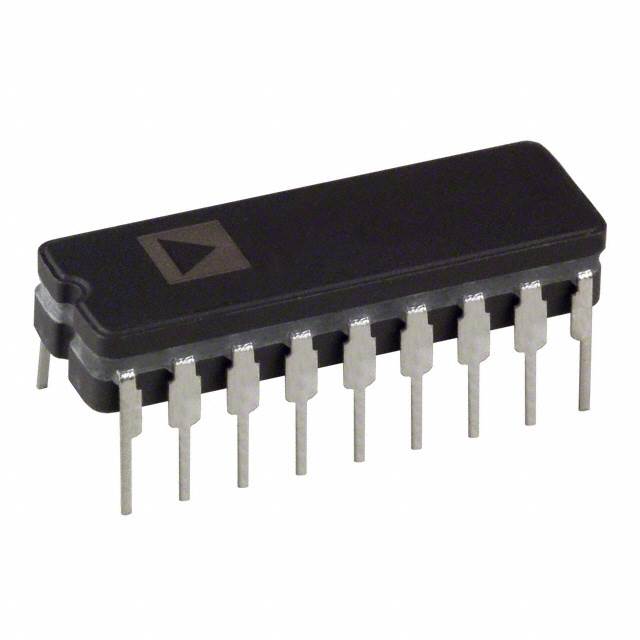

Analog Devices Inc. AD7575BQ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $25.98 | $25.98 |
| 15+ | $25.16 | $377.40 |
| 25+ | $24.62 | $615.50 |
| 50+ | $23.25 | $1,162.50 |
| 100+ | $20.51 | $2,051.00 |
| N+ | $4.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 18-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 18-CERDIP |
| ROHS |  |
The AD7575BQ from Analog Devices is an 8-bit analog-to-digital converter featuring a sample-and-hold architecture and a parallel interface. Designed for single-channel applications, it delivers reliable conversion performance across a -25°C to 85°C temperature range. Housed in a compact 18-pin CDIP package, this ADC is well-suited for industrial control, data acquisition, and embedded systems requiring straightforward digital interfacing.
- Simple Parallel Interface: Direct connection to 8-bit microprocessors and DSPs without complex serial protocols, reducing design time.
- Sample-and-Hold Front End: Ensures accurate conversion of varying analog signals by holding the input voltage stable during conversion.
- Wide Temperature Range: Operates from -25°C to 85°C, suitable for industrial environments.
- Compact CDIP Package: 18-pin ceramic DIP offers durability and easy prototyping in through-hole designs.
Industrial Process Control
The AD7575BQ's 8-bit resolution and parallel interface make it suitable for digitizing analog signals in industrial control loops, where fast data transfer and moderate accuracy are required.
Data Acquisition Systems
With its sample-and-hold architecture and single-channel input, the AD7575BQ can be used in compact data acquisition systems to digitize sensor outputs with a sampling rate determined by the external clock.
Embedded Microcontroller Interfacing
The parallel output simplifies connection to 8-bit microcontrollers, enabling rapid integration into embedded systems for reading analog sensors like temperature probes or light sensors.
Battery-Powered Instruments
Its low pin count and simple interface make it a cost-effective choice for portable instruments where board space is limited and 8-bit accuracy is sufficient.
Educational Kits and Prototyping
The AD7575BQ's straightforward parallel interface and through-hole CDIP package make it ideal for educational electronics labs and prototyping environments.
- Q: What type of ADC is the AD7575BQ?
- A: The AD7575BQ is an 8-bit successive approximation (S/H-ADC) analog-to-digital converter with a sample-and-hold front end.
- Q: What is the resolution of the AD7575BQ?
- A: The AD7575BQ provides 8-bit resolution, offering 256 discrete output levels.
- Q: How many channels does the AD7575BQ support?
- A: It features a single input channel (1 channel).
- Q: What interface does the AD7575BQ use?
- A: It uses a parallel interface for data output, enabling direct connection to microprocessors and DSPs.
- Q: What is the operating temperature range?
- A: The AD7575BQ operates over an industrial temperature range of -25°C to 85°C.
- Q: What package is the AD7575BQ available in?
- A: It is available in an 18-pin CDIP (0.300", 7.62mm) ceramic dual-in-line package.
