Analog Devices Inc. AD7580AQ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $139.56 | $139.56 |
| 15+ | $32.10 | $481.50 |
| 25+ | $31.40 | $785.00 |
| 50+ | $29.66 | $1,483.00 |
| 100+ | $26.17 | $2,617.00 |
| N+ | $5.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Bulk |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 50k |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP |
| ROHS |  |

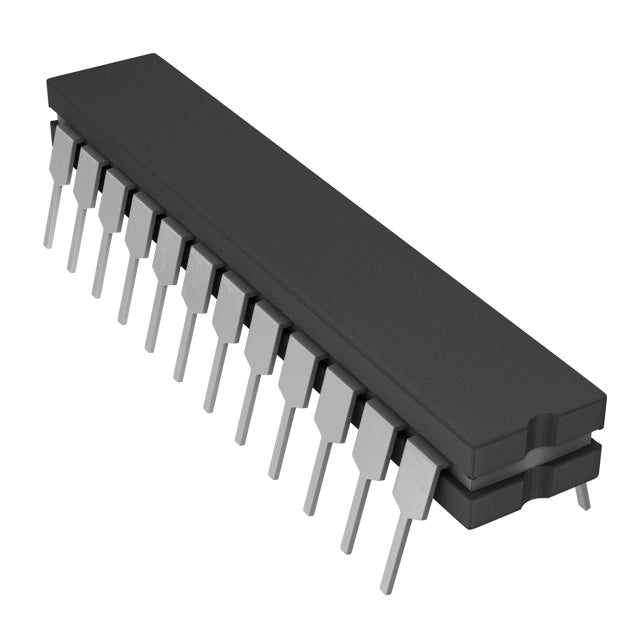

The AD7580AQ is a 10-bit analog-to-digital converter from Analog Devices, featuring a dual-channel sample-and-hold architecture. With a maximum sampling rate of 50k SPS, it provides reliable and accurate conversion for industrial and military applications. The device requires an external reference, allowing designers to optimize the voltage range for their specific needs. Its parallel interface ensures easy integration with legacy and modern digital systems. Housed in a rugged 24-pin ceramic CDIP package, the AD7580AQ operates over the temperature range of -25°C to 85°C, making it a dependable choice for harsh environments.
- Rugged Ceramic Package: The CDIP package offers superior hermeticity and mechanical strength, ideal for military and aerospace applications.
- Dual-Channel Input: Two channels enable simultaneous sampling of related signals, reducing system complexity and improving data correlation.
- External Reference Flexibility: Allows precise setting of the input voltage range, optimizing resolution for specific signal amplitudes.
- Proven Reliability: Analog Devices' legacy design ensures long-term availability and dependable operation in critical systems.
- Simple Parallel Interface: Direct connection to microprocessors without serial protocol overhead, simplifying firmware development.
Industrial Process Control
The AD7580AQ's 10-bit resolution and 50k SPS sampling rate are well-suited for monitoring temperature, pressure, and flow in industrial processes. The ceramic CDIP package provides excellent hermeticity and reliability in harsh environments.
Military and Aerospace Systems
The ceramic package and -25°C to 85°C temperature range make this ADC suitable for military avionics, guidance systems, and aerospace telemetry where component reliability is paramount.
Precision Instrumentation
In laboratory instruments and calibration equipment, the AD7580AQ offers stable and repeatable conversion. The external reference input allows users to set a precise voltage span for accurate measurements.
Automotive Test Equipment
For engine control unit (ECU) testing and sensor validation, this ADC can digitize signals from throttle position, manifold pressure, and temperature sensors. The parallel interface simplifies integration with test benches.
Energy Management Systems
In power monitoring applications, the dual channels can measure voltage and current simultaneously, enabling accurate power calculation. The 50k SPS rate is sufficient for 50/60 Hz power line monitoring.
Robotics and Actuator Control
The AD7580AQ can digitize position feedback from potentiometers and current sensors in robotic arms. The robust ceramic package withstands vibration and thermal cycling in industrial robots.
- Q: What type of ADC is the AD7580AQ?
- A: The AD7580AQ is a 10-bit analog-to-digital converter with a sample-and-hold (S/H-ADC) architecture, designed for reliable conversion in industrial environments.
- Q: What is the resolution of the AD7580AQ?
- A: It provides 10-bit resolution, offering 1024 discrete levels, suitable for applications requiring moderate precision.
- Q: What is the sampling rate of the AD7580AQ?
- A: The AD7580AQ supports a maximum sampling rate of 50k SPS, ideal for low-to-moderate speed measurement applications.
- Q: How many input channels does the AD7580AQ have?
- A: This ADC features 2 input channels, allowing simultaneous or sequential sampling of two analog signals.
- Q: What interface does the AD7580AQ use?
- A: It uses a parallel interface for straightforward connection to microprocessors and digital control systems.
- Q: What is the package type of the AD7580AQ?
- A: The AD7580AQ is available in a 24-pin CDIP package (0.300", 7.62mm), a ceramic dual-in-line package suitable for high-reliability applications.
