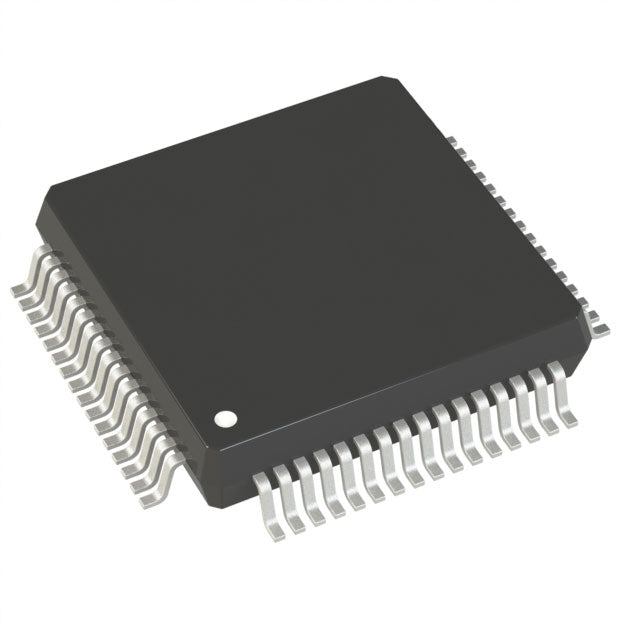

Analog Devices Inc. AD7606BSTZ-4
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 93.80 | Dhs. 93.80 |
| 15+ | Dhs. 90.85 | Dhs. 1,362.75 |
| 25+ | Dhs. 88.88 | Dhs. 2,222.00 |
| 50+ | Dhs. 83.94 | Dhs. 4,197.00 |
| 100+ | Dhs. 74.06 | Dhs. 7,406.00 |
| N+ | Dhs. 14.81 | Price Inquiry |
Request Quote / Inquiry
AD7606BSTZ-4 - High-Performance 4-Channel Data Acquisition System
The AD7606BSTZ-4 from Analog Devices is a precision 16-bit, 4-channel simultaneous sampling data acquisition system (DAS) designed for demanding industrial, instrumentation, and medical applications. With a 200kSPS sampling rate per channel and flexible serial/parallel interfaces including SPI, QSPI, DSP, and MICROWIRE, this ADC delivers exceptional performance for multi-channel measurement systems.
Key Features
- 16-bit resolution with 4 simultaneous sampling channels
- 200kSPS sampling rate for fast signal acquisition
- Multiple interface options: DSP, MICROWIRE, Parallel, QSPI, Serial, SPI
- Wide supply voltage range: 2.3V to 5.25V (analog), 4.75V to 5.25V (digital)
- Industrial temperature range: -40°C to 85°C
- Compact 64-LQFP surface mount package (10x10mm)
- RoHS compliant for environmental compliance
Applications
Ideal for industrial process control, power monitoring, medical instrumentation, test and measurement equipment, and multi-channel data logging systems requiring simultaneous sampling and high accuracy.
Related Products & Resources
Explore our complete range of ADCs/DACs - Special Purpose for more data acquisition and conversion solutions. Visit HQICKEY for our full catalog of precision semiconductors and programmable logic components. Stay updated with the latest industry insights and product announcements on our News & Updates Blog.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 4 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 200k |
| Data Interface | DSP, MICROWIRE™, Parallel, QSPI™, Serial, SPI™ |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.3V ~ 5.25V, 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| ROHS |  |
AD7606BSTZ-4.pdf
