Analog Devices Inc. AD7606BSTZ-6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 110.99 | Dhs. 110.99 |
| 15+ | Dhs. 107.49 | Dhs. 1,612.35 |
| 25+ | Dhs. 105.16 | Dhs. 2,629.00 |
| 50+ | Dhs. 99.31 | Dhs. 4,965.50 |
| 100+ | Dhs. 87.63 | Dhs. 8,763.00 |
| N+ | Dhs. 17.53 | Price Inquiry |
Request Quote / Inquiry
AD7606BSTZ-6 - High-Performance 6-Channel Data Acquisition System
The AD7606BSTZ-6 from Analog Devices is a precision 16-bit, 6-channel simultaneous sampling data acquisition system (DAS) designed for demanding industrial, medical, and instrumentation applications. With a 200kSPS sampling rate per channel and flexible serial interfaces including SPI™, QSPI™, DSP, and MICROWIRE™, this ADC delivers exceptional performance for multi-channel signal acquisition.
Key Features
- 16-bit resolution with 6 simultaneous sampling channels
- 200kSPS sampling rate for fast signal capture
- Multiple data interfaces: DSP, MICROWIRE™, Parallel, QSPI™, Serial, SPI™
- Wide voltage supply range: 2.3V to 5.25V (analog), 4.75V to 5.25V (digital)
- Industrial temperature range: -40°C to 85°C

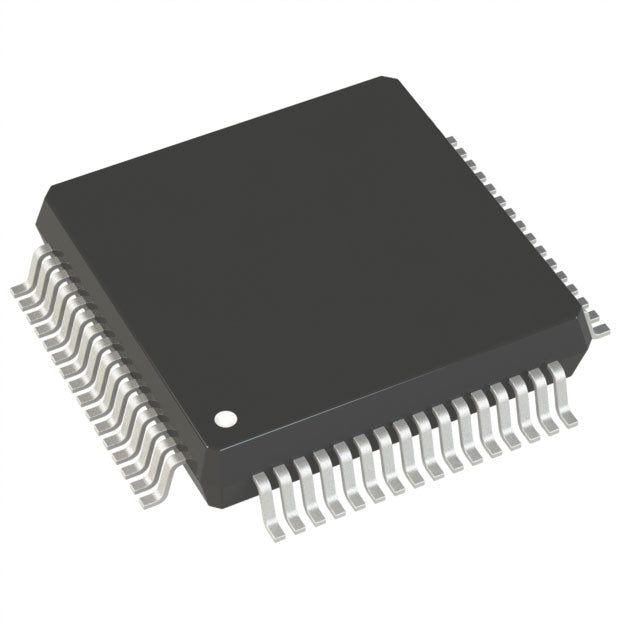

- Compact 64-LQFP surface mount package (10x10mm)
- RoHS compliant for environmental safety
Applications
Ideal for industrial automation, medical instrumentation, test and measurement equipment, motor control systems, and multi-channel data logging applications requiring synchronized sampling across multiple inputs.
Related Products & Resources
Explore our complete range of ADCs/DACs - Special Purpose components for your design needs.
Visit HQICKEY for our full catalog of semiconductors and programmable logic components.
Stay updated with the latest industry insights and product releases on our News & Updates Blog.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 6 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 200k |
| Data Interface | DSP, MICROWIRE™, Parallel, QSPI™, Serial, SPI™ |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.3V ~ 5.25V, 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-LQFP |
| Supplier Device Package | 64-LQFP (10x10) |
| ROHS |  |
