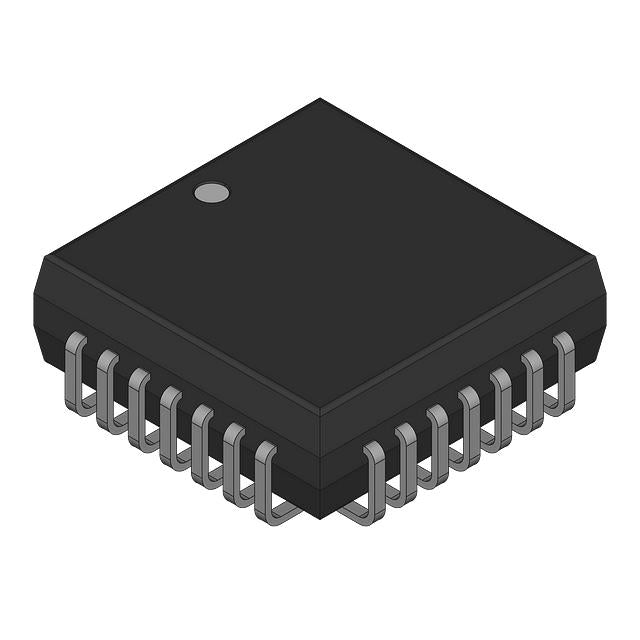

Analog Devices Inc. AD7672LP05
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $192.76 | $192.76 |
| 15+ | $44.33 | $664.95 |
| 25+ | $43.37 | $1,084.25 |
| 50+ | $40.96 | $2,048.00 |
| 100+ | $36.14 | $3,614.00 |
| N+ | $7.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | LC²MOS |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | - |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | - |
| Reference Type | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
The AD7672LP05 from Analog Devices is a 12-bit analog-to-digital converter with a parallel interface, designed for straightforward integration into digital systems. It features a single input channel and requires an external reference for precise voltage scaling. Operating from 0°C to 70°C, it is housed in a 28-LCC (J-Lead) package, making it suitable for industrial and commercial applications where reliable conversion is needed.
- Parallel Interface: Provides fast, simple data transfer to microprocessors.
- 12-Bit Resolution: Good balance between accuracy and cost for many applications.
- External Reference: Allows user-defined voltage range for flexibility.
- Compact LCC Package: Saves space on PCBs.
Industrial Process Control
The 12-bit parallel interface ADC is suitable for industrial process control systems where fast, direct digital output is needed for PLCs and microcontrollers.
Data Logging Systems
With external reference support, it can be used in precision data loggers for environmental monitoring.
Embedded Systems
Parallel interface simplifies integration with legacy microprocessors in embedded control applications.
Test Equipment
Ideal for benchtop multimeters and power analyzers requiring moderate resolution and speed.
Automotive Electronics
0°C to 70°C range suits automotive cabin electronics like climate control and infotainment systems.
