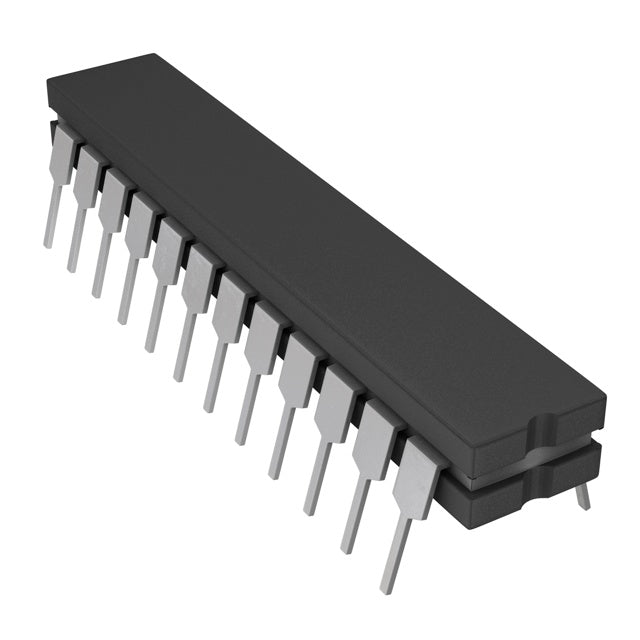

Analog Devices Inc. AD7710AQ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $151.08 | $151.08 |
| 15+ | $34.75 | $521.25 |
| 25+ | $33.99 | $849.75 |
| 50+ | $32.10 | $1,605.00 |
| 100+ | $28.33 | $2,833.00 |
| N+ | $5.67 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Bulk |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 1k |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V ~ 10V |
| Voltage - Supply, Digital | 5V |
| Features | PGA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP |
| ROHS |  |
The AD7710AQ is a high-resolution 24-bit dual-channel analog-to-digital converter from Analog Devices, designed for precision measurement applications. With a sampling rate of 1 kSPS and an SPI interface, it offers accurate and efficient data conversion. The MUX-PGA-ADC architecture includes a programmable gain amplifier, making it ideal for low-level sensor signals. Supporting both external and internal references, it provides design flexibility. Packaged in a 24-CDIP, this ADC is perfect for weigh scales, process control, and portable instruments.
- 24-Bit High Resolution: Delivers exceptional accuracy for precision measurement applications like weigh scales and transmitters.
- MUX-PGA-ADC Architecture: Integrated programmable gain amplifier allows direct connection to low-level sensors without external amplification.
- SPI Interface: Simple digital interface reduces pin count and simplifies microcontroller integration.
- Dual-Channel Input: Supports two sensors, reducing component count in multi-sensor systems.
Precision Weigh Scales
The 24-bit resolution and 1 kSPS sampling rate of the AD7710AQ make it ideal for high-precision weigh scales, providing accurate weight measurements in industrial and laboratory settings.
Process Control Transmitters
With its MUX-PGA-ADC architecture, this ADC can handle low-level sensor signals from pressure and temperature transmitters, ensuring precise process control in chemical plants.
Portable Instrumentation
The low sampling rate and high resolution are perfect for battery-powered portable instruments like pH meters and gas detectors, where power efficiency and accuracy are critical.
Data Logging Systems
For environmental data loggers, the dual-channel input and SPI interface allow easy integration with microcontrollers for long-term monitoring of temperature and humidity.
Medical Weighing and Monitoring
In medical applications, this ADC supports precise weight measurement for patient monitoring and infusion pumps, ensuring dosage accuracy.
