Analog Devices Inc. AD775JN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $69.32 | $69.32 |
| 15+ | $15.94 | $239.10 |
| 25+ | $15.60 | $390.00 |
| 50+ | $14.73 | $736.50 |
| 100+ | $13.00 | $1,300.00 |
| N+ | $2.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | AD775 |
| Packaging | Bulk | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 20M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -20°C ~ 75°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |

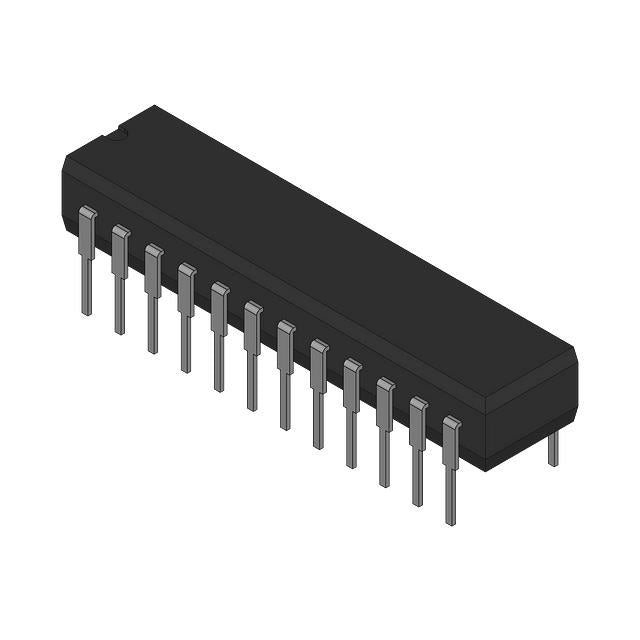

| Package / Case | 24-DIP (0.400", 10.16mm) |
| Supplier Device Package | 24-PDIP |
The AD775JN from Analog Devices is a high-speed 8-bit analog-to-digital converter designed for demanding signal processing applications. It features a single input channel and a parallel output interface, enabling data transfer rates up to 20M SPS. The MUX-S/H-ADC architecture ensures accurate sampling of fast-changing signals. It requires an external reference voltage and operates over a temperature range of -20°C to 75°C. Housed in a 24-DIP package, this ADC is well-suited for video digitization, radar processing, and high-speed data acquisition systems where speed and simplicity are critical.
- Ultra-Fast Sampling: 20M SPS sampling rate captures high-frequency signals with minimal distortion, ideal for video and RF applications.
- Simple Parallel Interface: Direct parallel output simplifies connection to high-speed digital buses without complex serial protocols.
- Proven Architecture: MUX-S/H-ADC design ensures reliable sample-and-hold performance for accurate conversions.
- Durable DIP Package: The 24-DIP package is easy to handle and solder, suitable for prototyping and industrial environments.
High-Speed Data Acquisition
With a 20M SPS sampling rate, the AD775JN is perfect for digitizing fast transient signals in oscilloscopes and high-speed test equipment.
Video Signal Digitization
The 8-bit resolution and parallel output enable digitization of composite video signals for imaging and display systems.
Radar and Communication Systems
Its high-speed parallel interface supports real-time processing of IF signals in radar receivers and communication transceivers.
Medical Ultrasound Imaging
The fast sampling rate allows capture of high-frequency ultrasound echoes for diagnostic imaging equipment.
Industrial Machine Vision
This ADC can digitize high-speed camera outputs for automated inspection systems in manufacturing lines.
Digital Oscilloscopes
The AD775JN's speed and parallel interface make it a core component in benchtop and portable digital storage oscilloscopes.
- Q: What is the AD775JN?
- A: The AD775JN is an 8-bit, single-channel analog-to-digital converter with a parallel interface and MUX-S/H-ADC architecture.
- Q: What is the resolution of the AD775JN?
- A: It offers 8-bit resolution, providing 256 discrete levels for digitizing analog signals.
- Q: What is the maximum sampling rate?
- A: The AD775JN can sample at up to 20M SPS, making it suitable for high-speed video and RF applications.
- Q: How many channels does it have?
- A: It has a single input channel (1 channel).
- Q: What interface does it use?
- A: It uses a parallel digital interface for high-speed data transfer to microprocessors or DSPs.
- Q: What is the package type?
- A: It comes in a 24-DIP (0.400", 10.16mm) package and operates from -20°C to 75°C.
