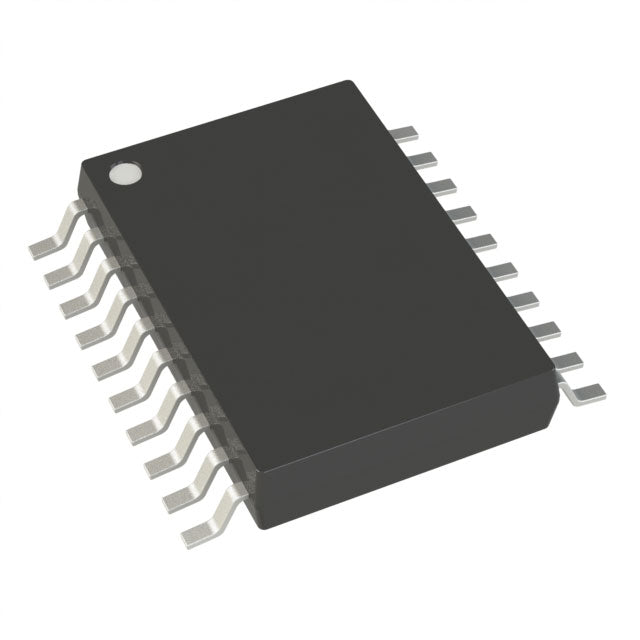

Analog Devices Inc. AD7812YRUZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.93 | $13.93 |
| 15+ | $13.49 | $202.35 |
| 25+ | $13.19 | $329.75 |
| 50+ | $12.46 | $623.00 |
| 100+ | $11.00 | $1,100.00 |
| N+ | $2.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 350k |
| Number of Inputs | 7, 8 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | DSP |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| ROHS |  |
The AD7812YRUZ from Analog Devices is a versatile 10-bit analog-to-digital converter featuring 8 multiplexed input channels and a sampling rate of 350 kSPS. Its MUX-S/H architecture allows sequential sampling of multiple analog signals with a single conversion core. The device supports both external and internal references, providing flexibility in voltage scaling. It communicates via a DSP-compatible serial interface and is housed in a compact 20-lead TSSOP package. Operating from -40°C to +105°C, it is well-suited for industrial, automotive, and portable multi-sensor applications.
- Multi-Channel Flexibility: 8 input channels enable monitoring of multiple sensors with one ADC, saving cost and board space.
- Dual Reference Options: Internal or external reference support allows optimization for accuracy or simplicity.
- Wide Temperature Range: -40°C to +105°C ensures reliable operation in harsh environments.
- Compact TSSOP Package: 20-lead TSSOP minimizes PCB footprint for space-constrained designs.
- DSP-Compatible Interface: Seamless integration with digital signal processors for efficient data transfer.
Multi-Sensor Data Acquisition
The 8-channel multiplexer allows the AD7812YRUZ to digitize multiple analog sensors with a single ADC, reducing component count in data acquisition systems.
Industrial Automation Control
With 350 kSPS throughput and 10-bit resolution, it can monitor multiple process variables like temperature, pressure, and flow in real time.
Automotive Sensor Monitoring
The -40°C to +105°C range makes it suitable for automotive environments, monitoring battery voltage, motor currents, and position sensors.
Portable Medical Devices
Multi-channel capability and low power consumption enable compact designs for patient monitoring and diagnostic equipment.
Environmental Monitoring Systems
Connect multiple environmental sensors (humidity, temperature, gas) to one ADC for efficient data logging in weather stations.
Robotics and Motion Control
Simultaneous monitoring of multiple joint position sensors and current sensors enhances precision in robotic control systems.
- Q: What type of ADC is the AD7812YRUZ?
- A: The AD7812YRUZ is a 10-bit multiplexed successive approximation ADC (MUX-S/H-ADC).
- Q: What is the resolution of the AD7812YRUZ?
- A: It has 10-bit resolution.
- Q: What is the sampling rate of the AD7812YRUZ?
- A: The maximum sampling rate is 350 kSPS (350k samples per second).
- Q: How many input channels does the AD7812YRUZ have?
- A: It supports 7 or 8 multiplexed input channels.
- Q: What interface does the AD7812YRUZ use?
- A: It uses a DSP-compatible serial interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to +105°C.
