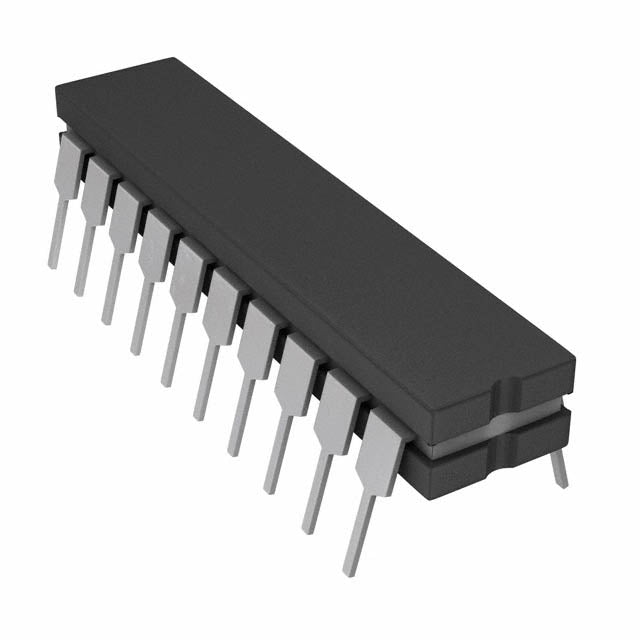

Analog Devices Inc. AD7821TQ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $110.15 | $110.15 |
| 15+ | $106.67 | $1,600.05 |
| 25+ | $104.36 | $2,609.00 |
| 50+ | $98.56 | $4,928.00 |
| 100+ | $86.96 | $8,696.00 |
| N+ | $17.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CERDIP |
| ROHS |  |
The AD7821TQ is an 8-bit, high-speed analog-to-digital converter from Analog Devices, engineered for applications demanding fast and reliable signal conversion. With a sampling rate of 1M SPS and a parallel interface, it delivers rapid data throughput for real-time systems. Its single-channel input and external reference provide design simplicity. Housed in a rugged 20-CDIP ceramic package, it operates reliably across a wide military temperature range of -55°C to +125°C, making it a top choice for aerospace, defense, and high-performance industrial applications.
