Analog Devices Inc. AD7824TQ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $346.68 | $346.68 |
| 15+ | $79.74 | $1,196.10 |
| 25+ | $78.00 | $1,950.00 |
| 50+ | $73.67 | $3,683.50 |
| 100+ | $65.00 | $6,500.00 |
| N+ | $13.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Flash |
| Reference Type | External |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |

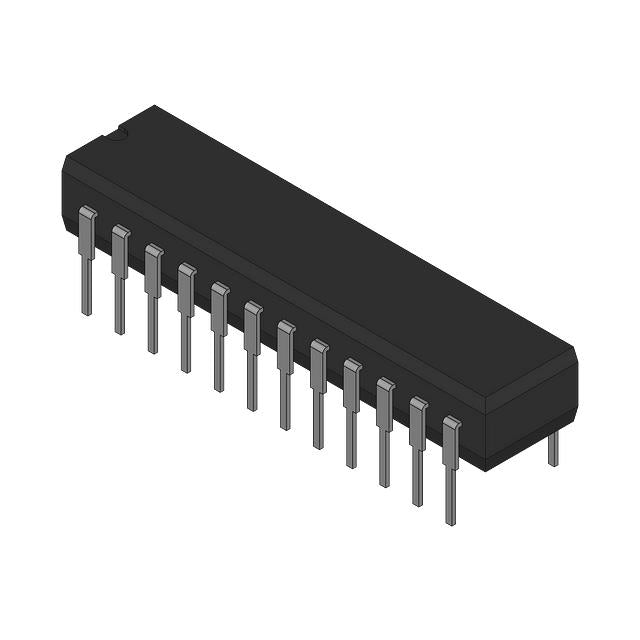

| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP |
The AD7824TQ is an 8-bit, 8-channel analog-to-digital converter from Analog Devices, featuring a MUX-S/H-ADC architecture and an external reference. Housed in a 24-pin ceramic DIP, it operates over the full military temperature range of -55°C to 125°C. The parallel interface simplifies connection to microprocessors, while the integrated multiplexer allows direct digitization of up to 8 analog inputs. Ideal for multi-sensor industrial, military, and automotive applications.
- 8 Integrated Channels: Eliminates the need for external multiplexers, saving board space and simplifying multi-sensor designs.
- Military Temperature Range: Guaranteed operation from -55°C to 125°C for harsh environment reliability.
- Integrated Sample-and-Hold: Ensures accurate conversion of varying analog signals without external S/H circuitry.
- Parallel Output: Provides fast, straightforward data transfer to microcontrollers and DSPs.
Multi-Channel Industrial Monitoring
The 8-channel input capability of the AD7824TQ allows simultaneous monitoring of multiple process variables (temperature, pressure, flow) in industrial plants, reducing component count.
Military Avionics Systems
With its -55°C to 125°C range and hermetic ceramic package, this ADC is suitable for flight control systems that must digitize multiple analog sensor signals reliably.
Automotive Test Equipment
In engine test benches, the AD7824TQ can digitize 8 different sensor outputs (e.g., throttle position, manifold pressure) with a single chip, simplifying wiring.
Data Logging Systems
The built-in multiplexer and sample-and-hold make it easy to build compact data loggers for environmental monitoring, capturing multiple channels sequentially.
Robotics & Automation
For robotic control, this ADC reads multiple joint position sensors or force sensors through one parallel interface, enabling efficient real-time control.
- Q: What is the resolution of the AD7824TQ?
- A: The AD7824TQ is an 8-bit analog-to-digital converter with 256 output codes.
- Q: How many channels does the AD7824TQ have?
- A: It features 8 input channels, making it ideal for multi-sensor data acquisition systems.
- Q: What interface does this ADC use?
- A: It uses a parallel interface for data output, allowing direct connection to 8-bit microprocessors.
- Q: What is the architecture of the AD7824TQ?
- A: It uses a MUX-S/H-ADC architecture, combining an input multiplexer, sample-and-hold, and ADC in one device.
- Q: What is the operating temperature range?
- A: The AD7824TQ operates over the military temperature range of -55°C to 125°C.
- Q: What package is it available in?
- A: It comes in a 24-pin CDIP (0.300", 7.62mm) ceramic dual-inline package.
