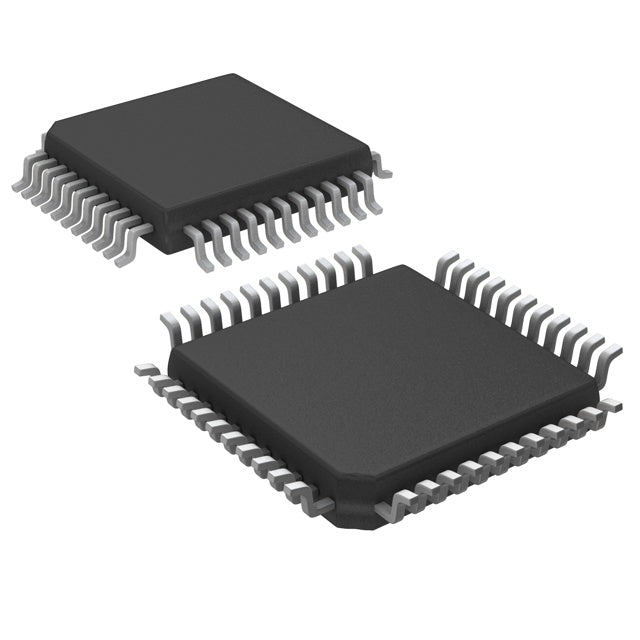

Analog Devices Inc. AD7836ASZ
Regular price
$66.78
Regular price
$70.29
Sale price
$66.78
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $66.78 | $66.78 |
| 15+ | $64.67 | $970.05 |
| 25+ | $63.26 | $1,581.50 |
| 50+ | $59.75 | $2,987.50 |
| 100+ | $52.72 | $5,272.00 |
| N+ | $10.54 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 14 |
| Number of D/A Converters | 4 |
| Settling Time | 16µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±2 (Max), ±0.9 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 44-QFP |
| Supplier Device Package | 44-MQFP (10x10) |
| ROHS |  |
AD7836ASZ.pdf
×
