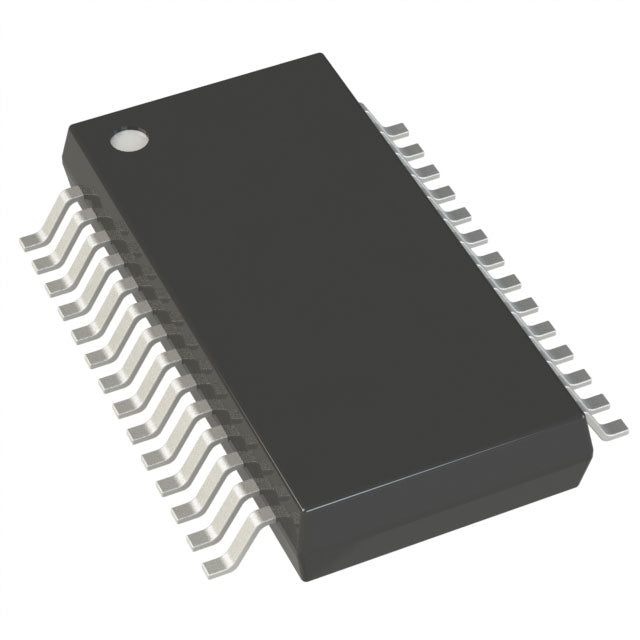

Analog Devices Inc. AD7863ARSZ-3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $44.29 | $44.29 |
| 15+ | $42.89 | $643.35 |
| 25+ | $41.96 | $1,049.00 |
| 50+ | $39.63 | $1,981.50 |
| 100+ | $34.97 | $3,497.00 |
| N+ | $6.99 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 175k |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The AD7863ARSZ-3 is a 14-bit quad-channel ADC from Analog Devices, featuring a multiplexer and sample-and-hold circuit. It samples at 175 kSPS with a parallel interface. The 4-channel input is designed for multi-signal acquisition in industrial and automotive systems. Packaged in a 28-SSOP, it operates from -40°C to 85°C, offering reliable performance in demanding environments.
- Multi-Channel Efficiency: 4-channel MUX reduces external analog front-end complexity.
- High Resolution: 14-bit ensures fine measurement granularity.
- Robust Temperature Range: -40°C to 85°C for outdoor and automotive use.
- Parallel Data Output: Enables high-speed interfacing with FPGAs.
- Small Footprint: 28-SSOP package is ideal for space-constrained PCBs.
Multi-Sensor Industrial Monitoring
The 4-channel MUX-S/H architecture allows simultaneous sampling of multiple industrial sensors (vibration, temperature, current) at 175 kSPS, enabling predictive maintenance systems.
Robotics Control Systems
With 14-bit resolution and parallel output, it provides precise joint position and torque feedback for robotic arms, improving motion control accuracy.
Smart Grid Infrastructure
Used in substation automation to digitize voltage and current from multiple phases, supporting real-time grid monitoring and fault detection.
Environmental Test Chambers
The wide temperature range and multi-channel capability make it suitable for logging temperature and humidity in environmental test equipment.
Audio Test Equipment
In audio analyzers, the 14-bit resolution and 175 kSPS sampling rate allow accurate measurement of frequency response and distortion.
Automotive Battery Management
Monitors cell voltages and temperatures in EV battery packs, ensuring safe operation and optimal charging.
- Q: What type of ADC is the AD7863ARSZ-3?
- A: It is a 14-bit 4-channel MUX-S/H-ADC (multiplexer with sample-and-hold) from Analog Devices.
- Q: What is the resolution and sampling rate?
- A: The resolution is 14 bits, and the maximum sampling rate is 175 kSPS.
- Q: How many input channels does it support?
- A: It supports 4 input channels.
- Q: What is the digital interface?
- A: It uses a Parallel interface.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What package is available?
- A: It comes in a 28-SSOP (0.209", 5.30mm Width) package.
