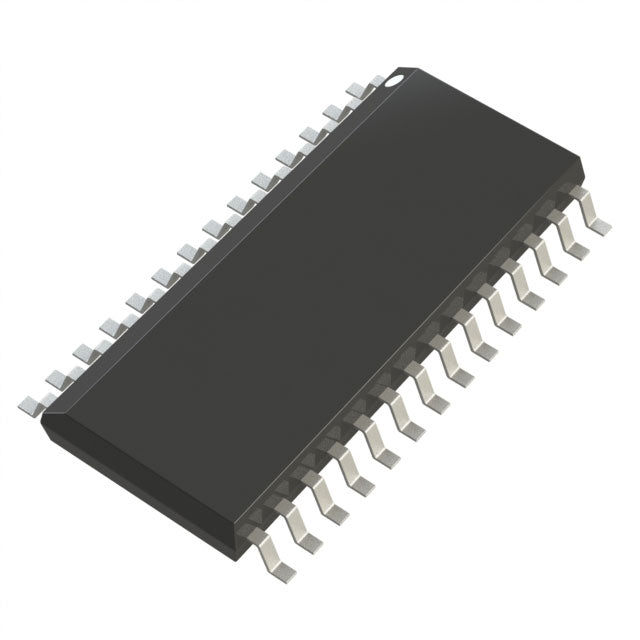

Analog Devices Inc. AD7863ARZ-3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $44.29 | $44.29 |
| 15+ | $42.89 | $643.35 |
| 25+ | $41.96 | $1,049.00 |
| 50+ | $39.63 | $1,981.50 |
| 100+ | $34.97 | $3,497.00 |
| N+ | $6.99 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 175k |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| ROHS |  |
The AD7863ARZ-3 from Analog Devices is a 14-bit ADC with a 175k SPS sampling rate and 4 multiplexed input channels. It features a MUX-S/H-ADC architecture, parallel interface, and supports both external and internal references. Operating from -40°C to 85°C, it is packaged in a 28-SOIC. Ideal for industrial automation, medical instrumentation, and power monitoring.
- 14-bit resolution provides high precision for demanding measurement applications.
- 4-channel multiplexer allows simultaneous sampling of multiple signals, reducing system cost.
- 175k SPS sampling rate supports real-time data acquisition.
- Wide temperature range (-40°C to 85°C) ensures reliability in harsh environments.
Multi-Channel Data Acquisition
The AD7863ARZ-3's 4-channel multiplexed input and 14-bit resolution make it ideal for high-accuracy data acquisition systems in industrial automation.
Industrial Automation
With a 175k SPS sampling rate and parallel output, it can handle real-time monitoring of multiple sensors in factory control systems.
Medical Instrumentation
The wide temperature range (-40°C to 85°C) and 14-bit precision suit medical imaging and patient monitoring equipment.
Automotive Sensor Arrays
In automotive test systems, the AD7863ARZ-3 digitizes multiple sensor signals (temperature, pressure) with high resolution for engine diagnostics.
Power Monitoring
Its 4 channels can simultaneously sample voltage and current phases in three-phase power systems, enabling accurate energy metering.
- Q: What is the resolution of the AD7863ARZ-3?
- A: The AD7863ARZ-3 has a resolution of 14 bits.
- Q: What is the sampling rate?
- A: The sampling rate is 175k SPS.
- Q: How many channels does it have?
- A: It has 4 input channels.
- Q: What interface does it use?
- A: It uses a parallel interface.
- Q: What is the architecture?
- A: It uses a MUX-S/H-ADC architecture.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
