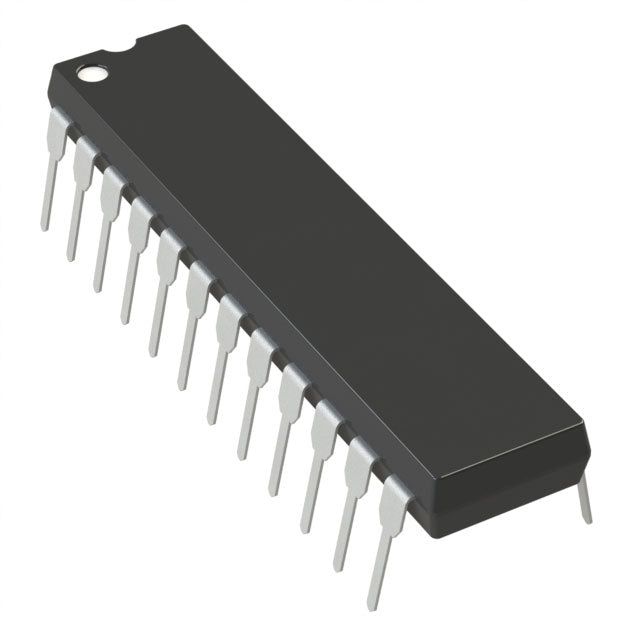

Analog Devices Inc. AD7870LNZ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $448.90 | $448.90 |
| 15+ | $103.24 | $1,548.60 |
| 25+ | $101.00 | $2,525.00 |
| 50+ | $95.39 | $4,769.50 |
| 100+ | $84.17 | $8,417.00 |
| N+ | $16.83 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Marketplace | Tube |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI, Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | ±5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP |
| ROHS |  |
The AD7870LNZ is a 12-bit, single-channel analog-to-digital converter from Analog Devices. It provides a sampling rate of 100 kSPS and offers both SPI and parallel interfaces for maximum design flexibility. The internal reference simplifies circuit design, while the 24-pin DIP package is suitable for through-hole assembly. Operating from 0°C to 70°C, it is well-suited for industrial and commercial applications such as sensor interfacing, data acquisition, and motor control.
- Interface Flexibility: Supports both SPI and parallel connections for easy integration with various microcontrollers.
- Compact Design: Internal reference eliminates the need for external components.
- Low Power: Ideal for battery-powered and portable applications.
- Proven Reliability: Analog Devices' S/H-ADC architecture ensures stable conversion.
Sensor Signal Conditioning
The 12-bit resolution and 100 kSPS sampling rate are ideal for digitizing signals from temperature, strain, and pressure sensors in precision measurement systems.
Portable Medical Devices
With SPI interface and low power consumption, the AD7870LNZ is suitable for battery-operated patient monitors and glucose meters.
Motor Control Systems
The parallel interface allows fast data transfer to DSPs for real-time current and voltage monitoring in industrial motor drives.
Data Acquisition Cards
Its dual interface (SPI/Parallel) provides flexibility for PCI or USB-based DAQ cards used in laboratory automation.
Robotics and Automation
The compact DIP package and reliable performance make it a good choice for robotic control systems requiring accurate position feedback.
