Analog Devices Inc. AD7890AR-4REEL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,904.94 | Dhs. 355,904.94 |
| 15+ | Dhs. 344,665.84 | Dhs. 5,169,987.60 |
| 25+ | Dhs. 337,173.10 | Dhs. 8,429,327.50 |
| 50+ | Dhs. 318,441.26 | Dhs. 15,922,063.00 |
| 100+ | Dhs. 280,977.59 | Dhs. 28,097,759.00 |
| N+ | Dhs. 56,195.52 | Price Inquiry |
Request Quote / Inquiry

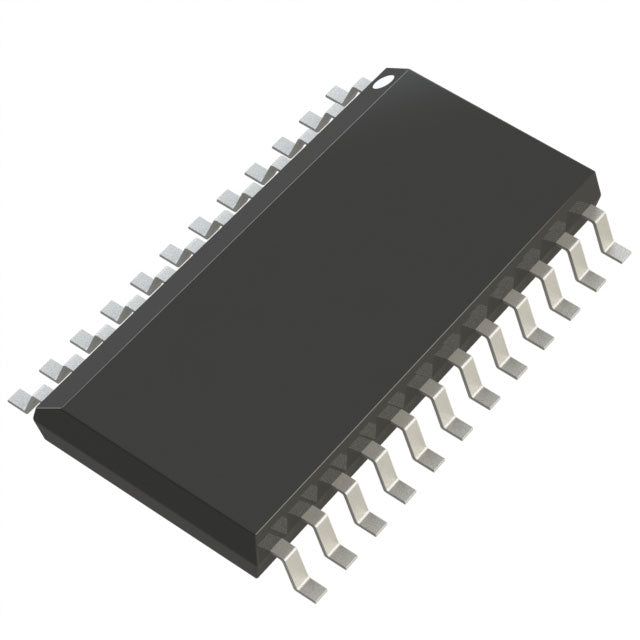

AD7890AR-4REEL - 12-Bit 8-Channel Data Acquisition System IC
The AD7890AR-4REEL from Analog Devices is a high-performance 12-bit data acquisition system (DAS) featuring 8 input channels and a 117kSPS sampling rate. This versatile IC is ideal for precision measurement applications in industrial control, instrumentation, and embedded systems requiring multi-channel analog-to-digital conversion.
Key Features & Benefits
- 8-Channel Input: Simultaneous monitoring of multiple analog signals reduces system complexity and component count
- 12-Bit Resolution: Delivers precise 4096-level quantization for accurate signal representation
- 117kSPS Sampling Rate: Fast conversion speed suitable for dynamic signal acquisition
- SPI Interface: Industry-standard serial interface simplifies integration with microcontrollers and DSPs
- Single 5V Supply: Simplified power design reduces BOM cost and board space
- -40°C to 85°C Range: Industrial temperature grade ensures reliable operation in harsh environments
- Surface Mount 24-SOIC: Standard package compatible with automated assembly processes
Typical Applications
- Industrial process control and monitoring systems
- Multi-channel data loggers and instrumentation
- Automotive sensor interfaces and diagnostics
- Medical equipment and patient monitoring
- Test and measurement equipment
- Embedded control systems requiring precision ADC
Why Choose Authorized Distribution
All AD7890AR-4REEL units are sourced through authorized Analog Devices distribution channels, ensuring full manufacturer traceability, authentic components, and comprehensive technical support. Each reel includes complete documentation and is backed by our long lifecycle availability commitment to support your production programs.
Need design support or reference materials? Contact our technical team for application notes, evaluation boards, and integration guidance.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | | |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 117k |
| Data Interface | SPI |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
AD7890AR-4REEL.pdf
